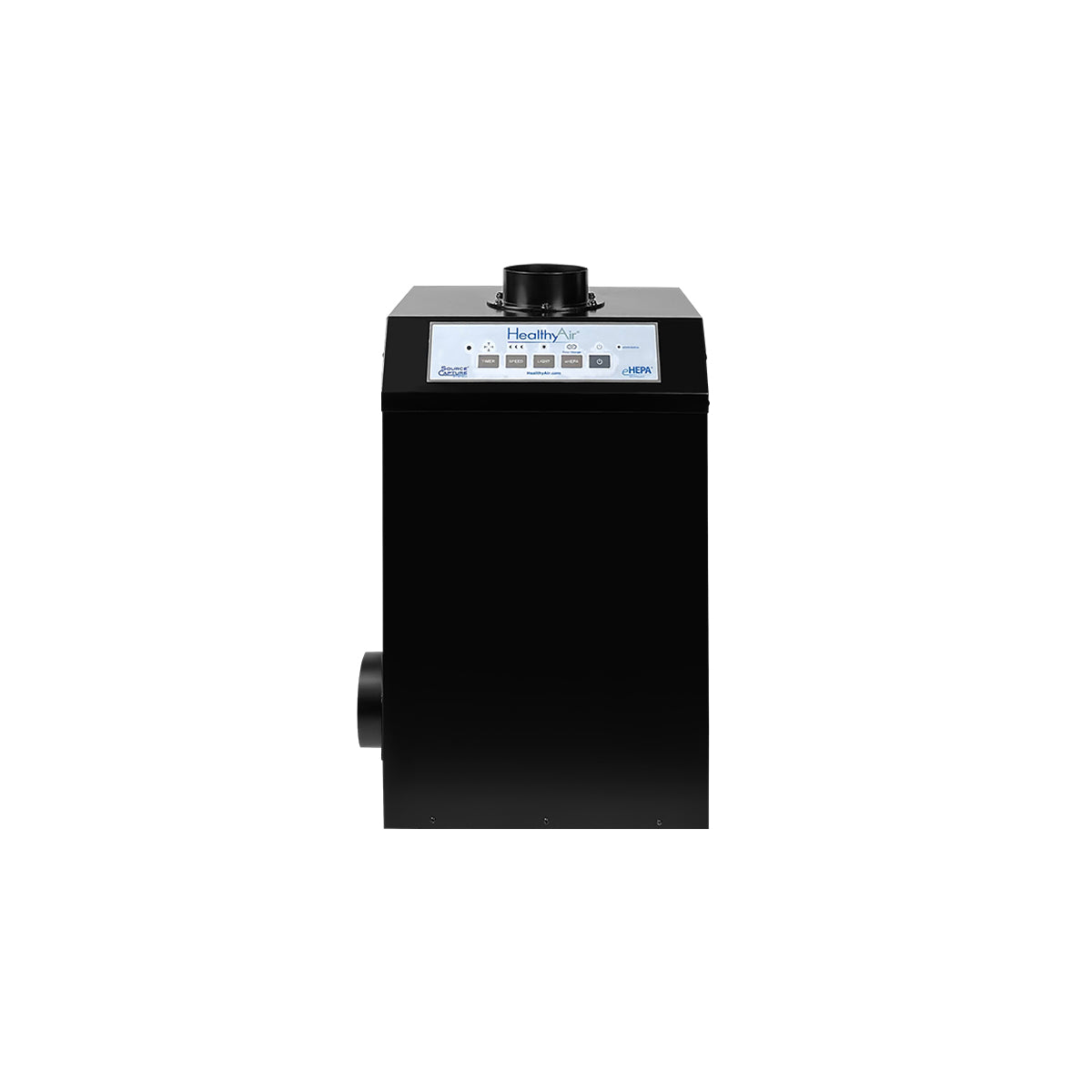

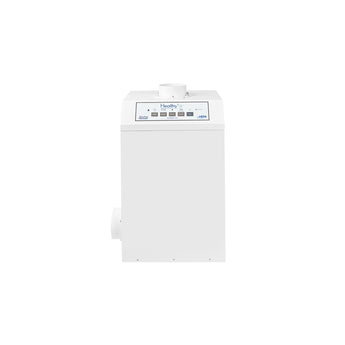

HealthyAir® Local Exhaust Ventilation System
Patented eHEPA® Technology
With patented eHEPA® technology, this unit effectively filter air in a highly efficient and innovative 3-stage process, resulting in a safer work environment with a healthier breathing zone for occupants.
As contaminated air passes through the unit, the Pre-Filter, eHEPA® Filter, and Enhanced Carbon Catalytic Filter work in conjunction to collect and deactivate airborne particles; including dust, smoke, allergens, gasses, odors, and VOCs.
HealthyAir® System 3-stage process collectively utilizes the 5 filtration methods of Sieving, Direct impact, Inertial Impaction, Diffusion, and Electrostatic.
Local Exhaust Ventilation/In-Line Air Filtration

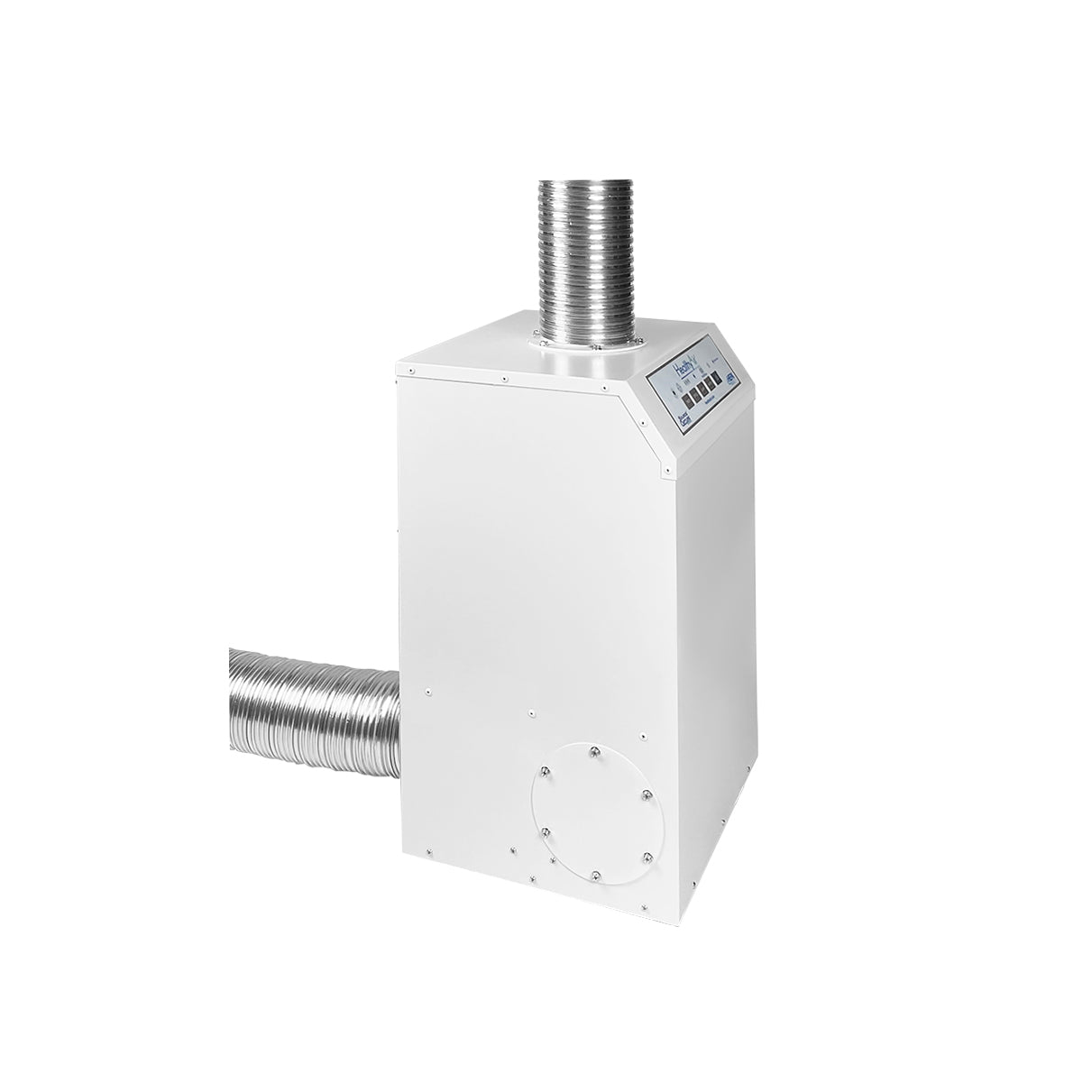

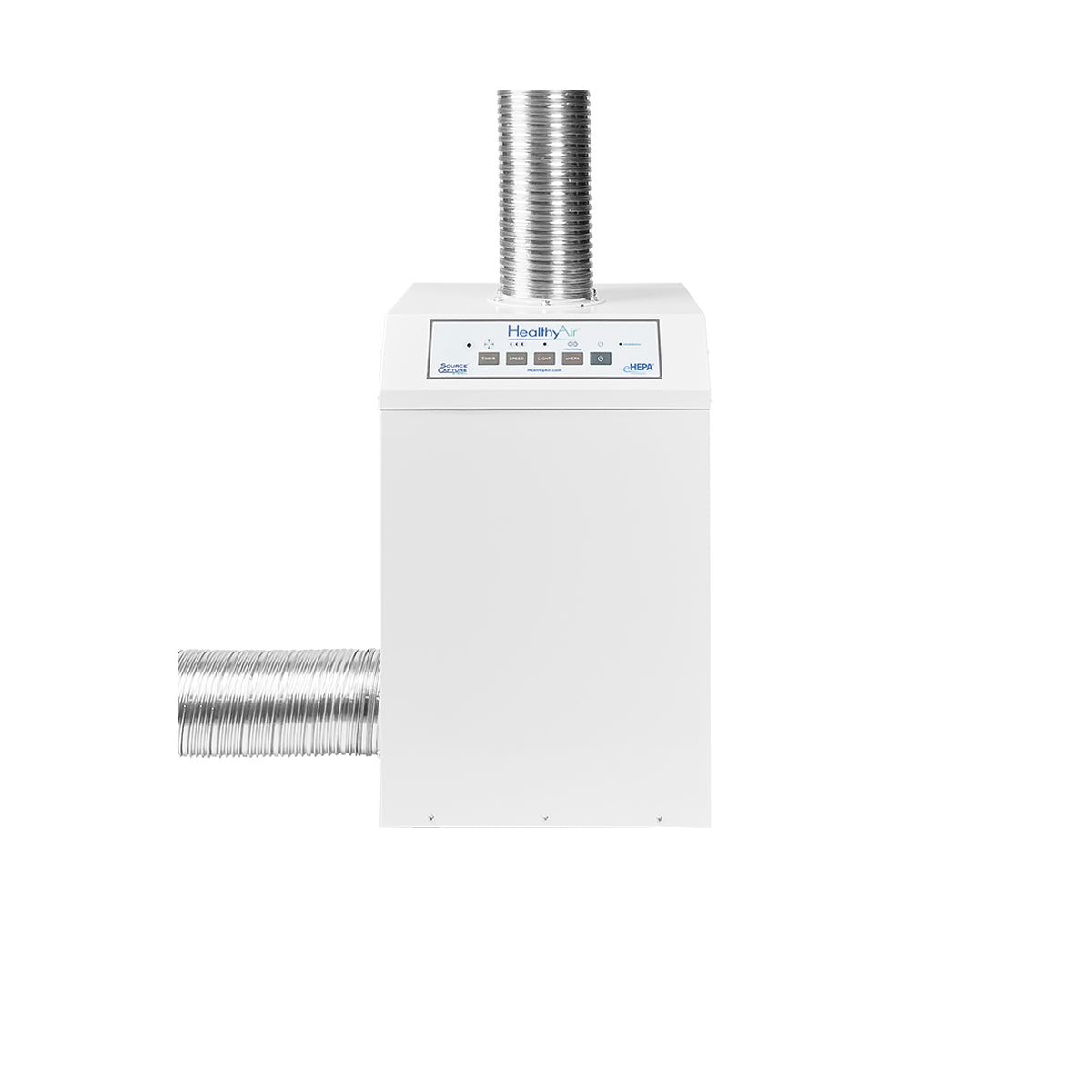

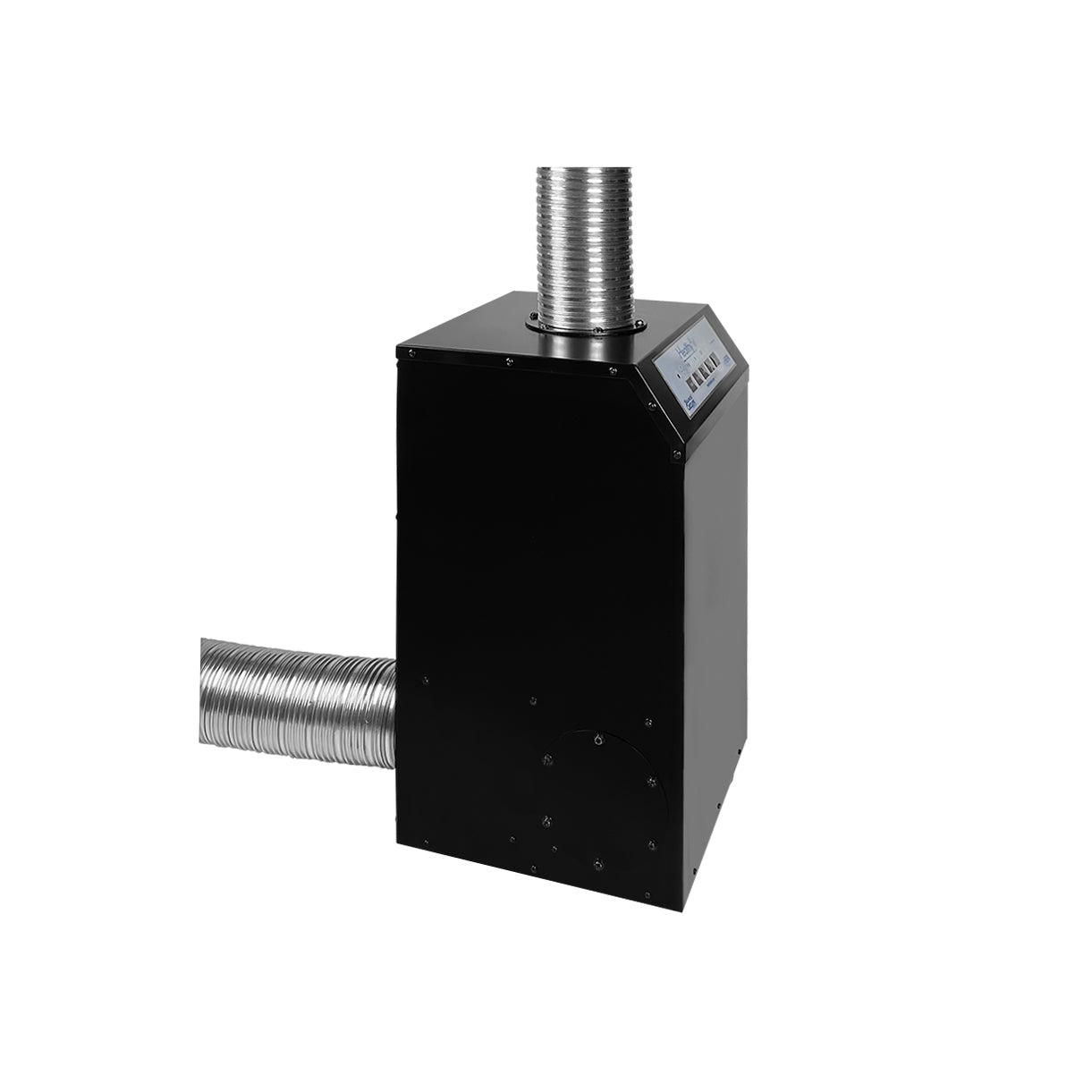

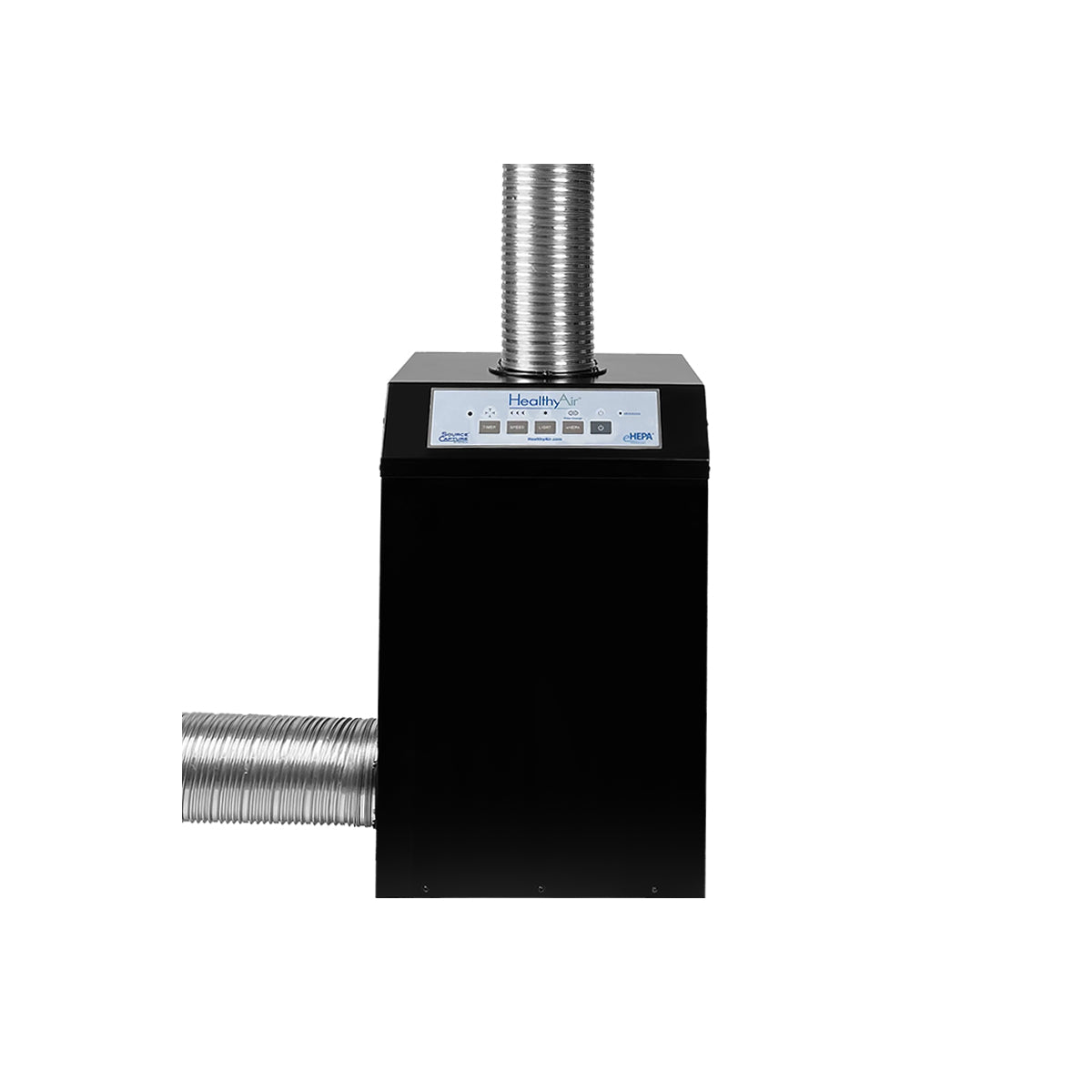

The system is designed to take in contaminated air via a 4" dia. inlet duct, filter contaminants, and discharge treated air via a 4" dia. exhaust duct.
Recirculating Ventilation
This unit is also able to be operated as a Recirculating Ventilation system to provide air purification when connected to downdraft tables or similar work stations.
Weight & Dimensions
The approximate weight and base dimensions of the units are:
HA-SCP-G5-LEV: 40 lbs. - 12”l x 14”w x 20”h
HA-SSC-G4-LEV: 50 lbs. - 15”l x 16”w x 25”h
Operation
The HA-SSC-G4-LEV and HA-SCP-G5-LEV offer simple remote-control operation and is equipped with a three-speed fan that enables control of air flow and sound level (Low: 54 dBA, Medium: 56 dBA, High: 64 dBA)
Maintenance of the unit is simple and does not require the use of any tools.
Filter Model & Replacement
The Healthy Air® HA-SCP-G5-LEV utilizes the HA-IFM-1111 Integrated Filter Module that consists of a Pre-Filter, eHEPA Filter, and Activated Carbon Filter. Each unit comes with (1) pre-installed filter.
The Healthy Air® HA-SSC-G4-LEV utilizes the HA-SERIES-1213 filter set, consisting of a Pre-Filter, eHEPA Filter, and Activated Carbon Filter. Each unit comes with (1) per-installed filter.
The recommend filter replacement cycle is 6 month on average. However, the need for filter replacement naturally varies depending on the frequency and nature of use.
The following replacement filters are compatible with model HA-SCP-G5-LEV:
The following replacement filter is compatible with model HA-SSC-G4-LEV:
