Outside Ventilation Compliance
IMC Code for Nail Salons
Need help selecting the best Nail Salon Ventilation System for Your Salon or Salon Suite?
Contact us and we'll gladly help you identify the best solution for you.
Nail Salon IMC Ventilation Code Compliance
HealthyAir® Source Capture Systems are engineered to meet salon ventilation code requirements.
For new nail salons, IMC code requires a source capture system capable of exhausting a minimum of 50 CFM per station with exhaust inlets located not more than 12 inches from the point of chemical application.
The implementation of local exhaust ventilation systems using Source Capture technology is of utmost significance in nail salons. These systems play a crucial role in reducing potential health risks associated with airborne contaminants, such as ultra-fine particles and chemicals like acetone, isopropyl alcohol, and formaldehyde.
HealthyAir® Source Capture Systems are engineered to meet salon ventilation code requirements.
In order to ensure the well-being of both workers and customers, it is imperative to effectively remove fumes generated by these chemicals within the salon. Ventilation Code 403.3 mandates the installation of a source capture system at each manicure and pedicure station.
As per the definition of a source capture system, the exhaust from a station in a nail salon must capture air contaminants at their origin and expel them into the outdoor atmosphere. A minimum exhaust rate of 50 cubic feet per minute (cfm) is mandated at each station, with exhaust inlets positioned no more than 12 inches horizontally and vertically from the point of chemical application.
When one or more required source capture systems operate continuously during salon occupancy, the exhaust rate from these systems may be applied to meet the exhaust flow rate specified in Table 403.3.1.1 for the nail salon.
Moreover, in accordance with Section 501.3.1, the second clause of the International Mechanical Code (IMC), the endpoint for exhaust outlets releasing outdoors must be positioned at a distance of 10 feet from the property line, 3 feet from exterior walls and roofs, 10 feet away from accessible openings into buildings, and elevated 10 feet above the adjacent ground level.
Nail Salon Ventilation Code Compliance Requirements
All HealthyAir® Source Capture® system fully comply with, and exceed, IMC Ventilation Code requirements for Nail Salons.
IMC Chapter 4 Ventilation Code requires:
- A minimum of 50 cfm of air extraction from each nail station;
- At least one exhaust inlet per nail station located <12” from the point of chemical application;
- Exhaust of all extracted air from the nail salon to the outdoor atmosphere.
For Nail Salons IMC Chapter 5 Exhaust System code requires:
- The termination point of exhaust outlets and ducts discharging to the outdoors shall be located with the following minimum distances:
- For all environmental air exhaust (such as exhaust from HealthyAir® eHEPA® filtration systems): 3 feet (914 mm) from property lines; 3 feet (914 mm) from operable openings into buildings, and 10 feet (3048 mm) from mechanical air intakes.
- For other product-conveying outlets (such as exhaust from HealthyAir® Fan-Filter filtration systems): 10 feet (3048 mm) from the property lines; 3 feet (914 mm) from exterior walls and roofs; 10 feet (3048 mm) from operable openings into buildings; 10 feet (3048 mm) above adjoining grade.
Added benefits of system use include:
- The clean air output of each system can be applied to the total 0.6 cfm/ft2 that is required to be exhausted from overall salon air, which in turn conserves energy;
- Prevents contaminated air from re-entering the salon and/or entering adjacent environments, including neighboring businesses or residences;
- Prevents nail dust from accumulating in ductwork and creating potential hazards.
Nail Salon Source Capture Systems
HealthyAir® Source Capture Systems® engineered to meet Nail Salon IMC Ventilation Code and provide eHEPA® the most advanced filtration technology available in the market.
HealthyAir Nail Salon Source Capture Ventilation | Single Station
From $1,790.00
/
White
Black
Available in 2 colors
in stock, ready to ship

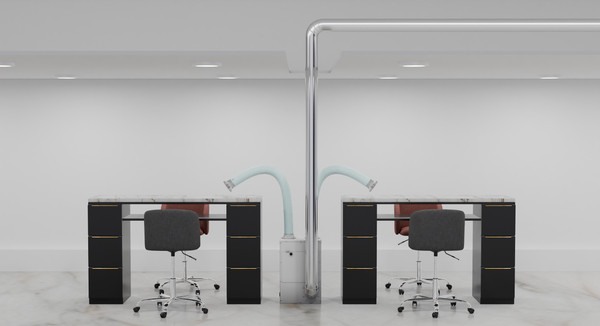

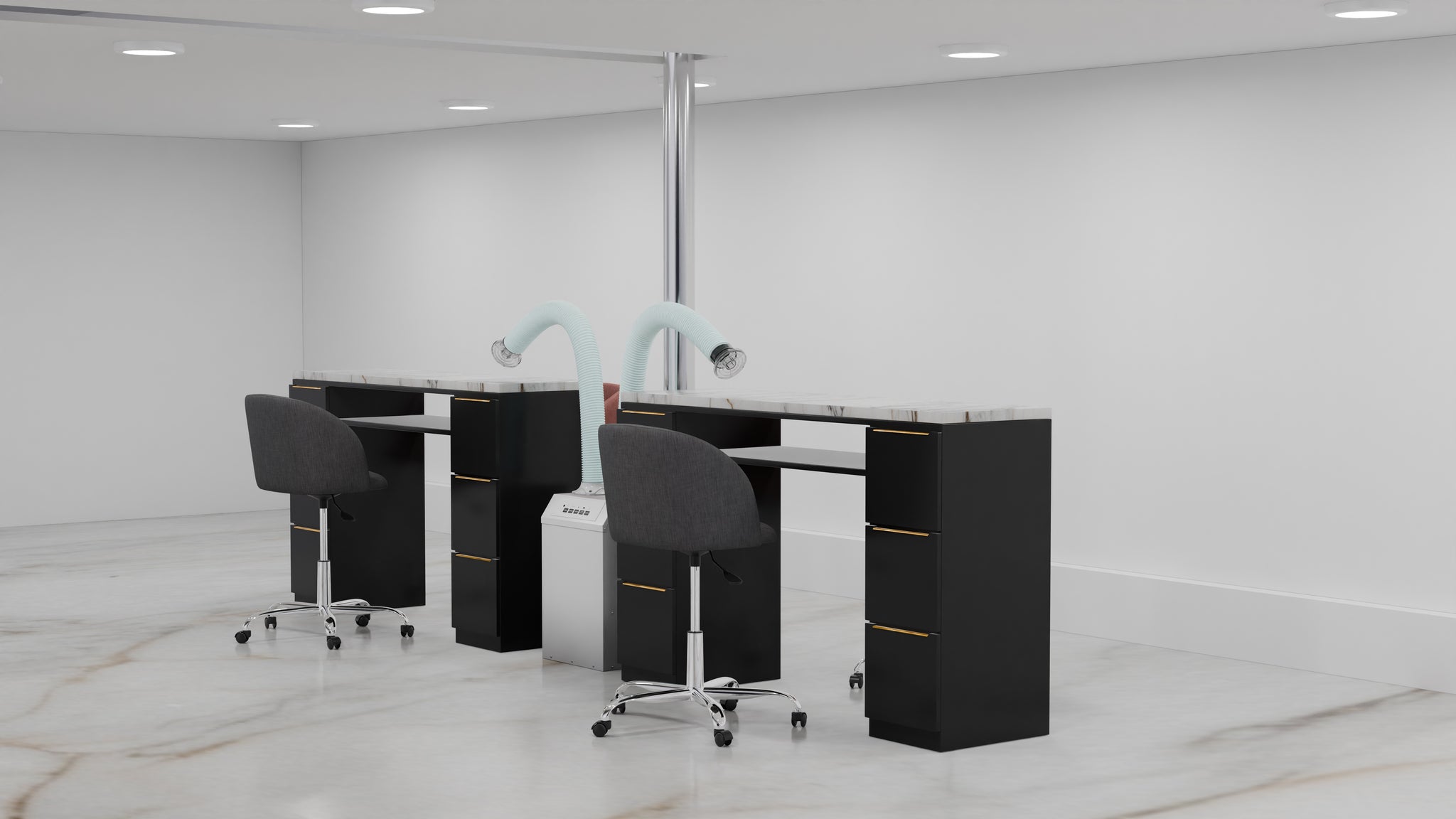

HealthyAir Nail Salon Source Capture Ventilation | Dual Station
From $1,859.00
/
White
Black
Available in 2 colors
in stock, ready to ship

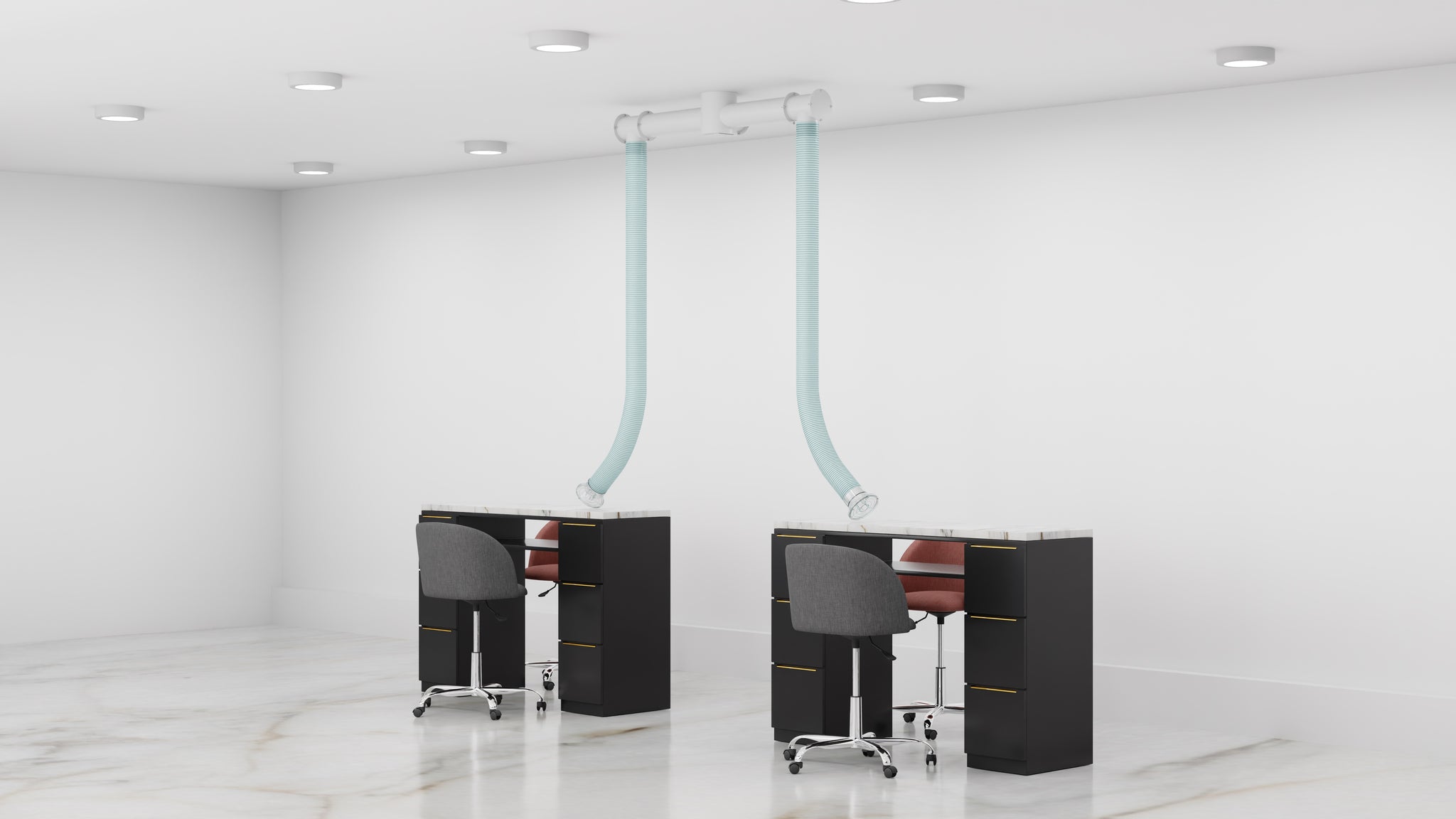

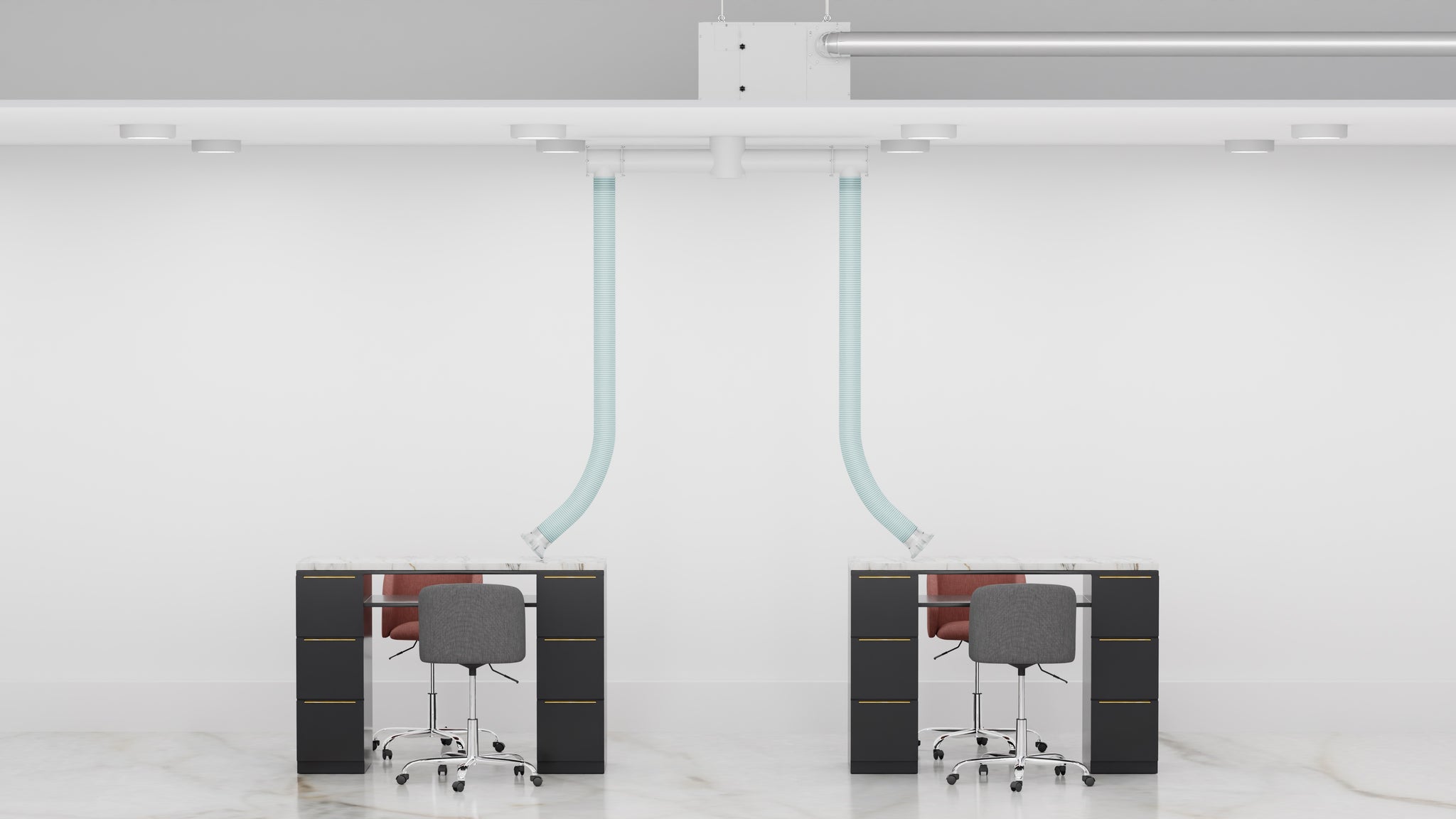

HealthyAir Ceiling-Mount Local Exhaust Ventilation System for Dual Station Source Capture
From $3,448.00
/
White
Black
Available in 2 colors
in stock, ready to ship

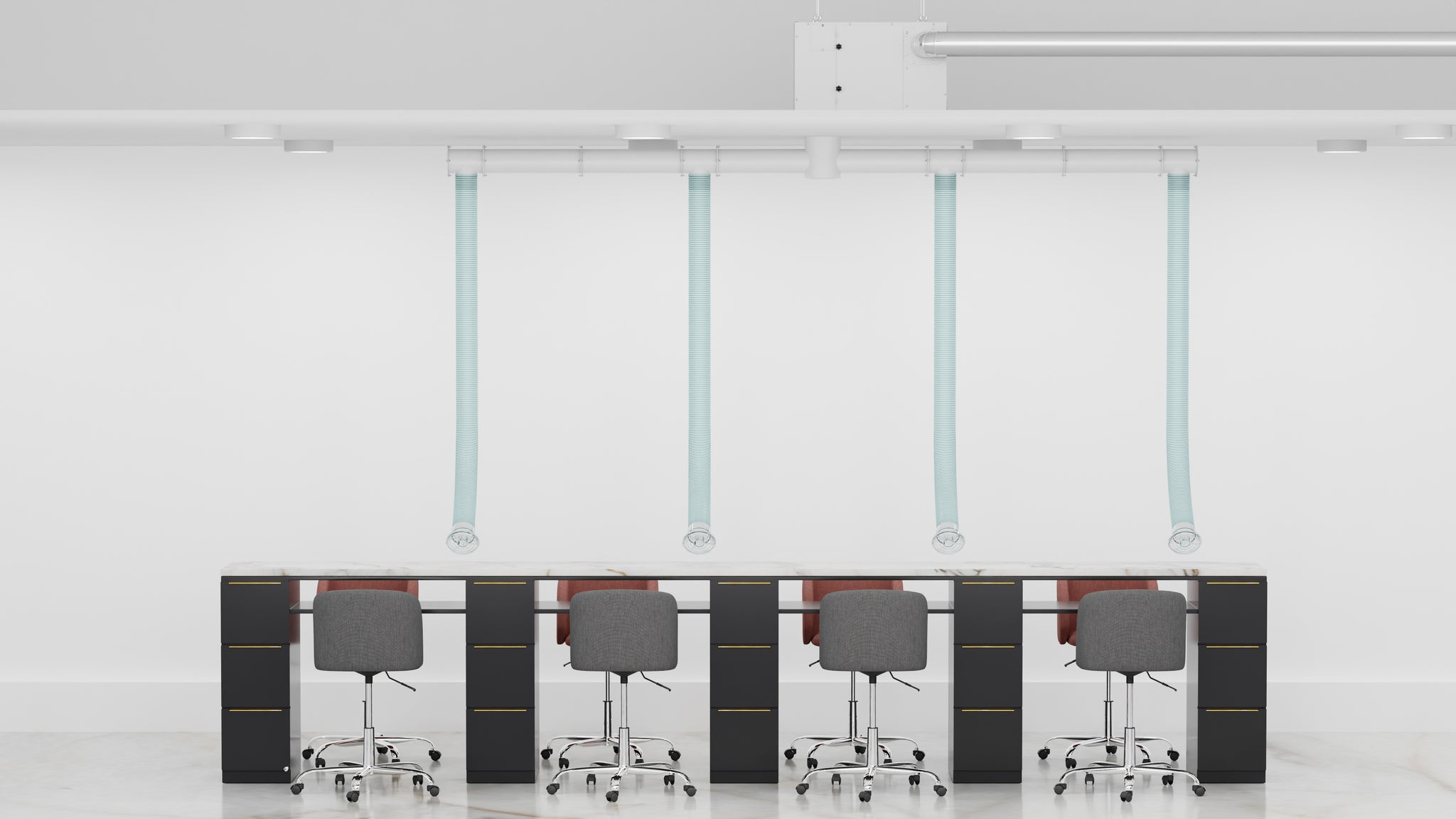

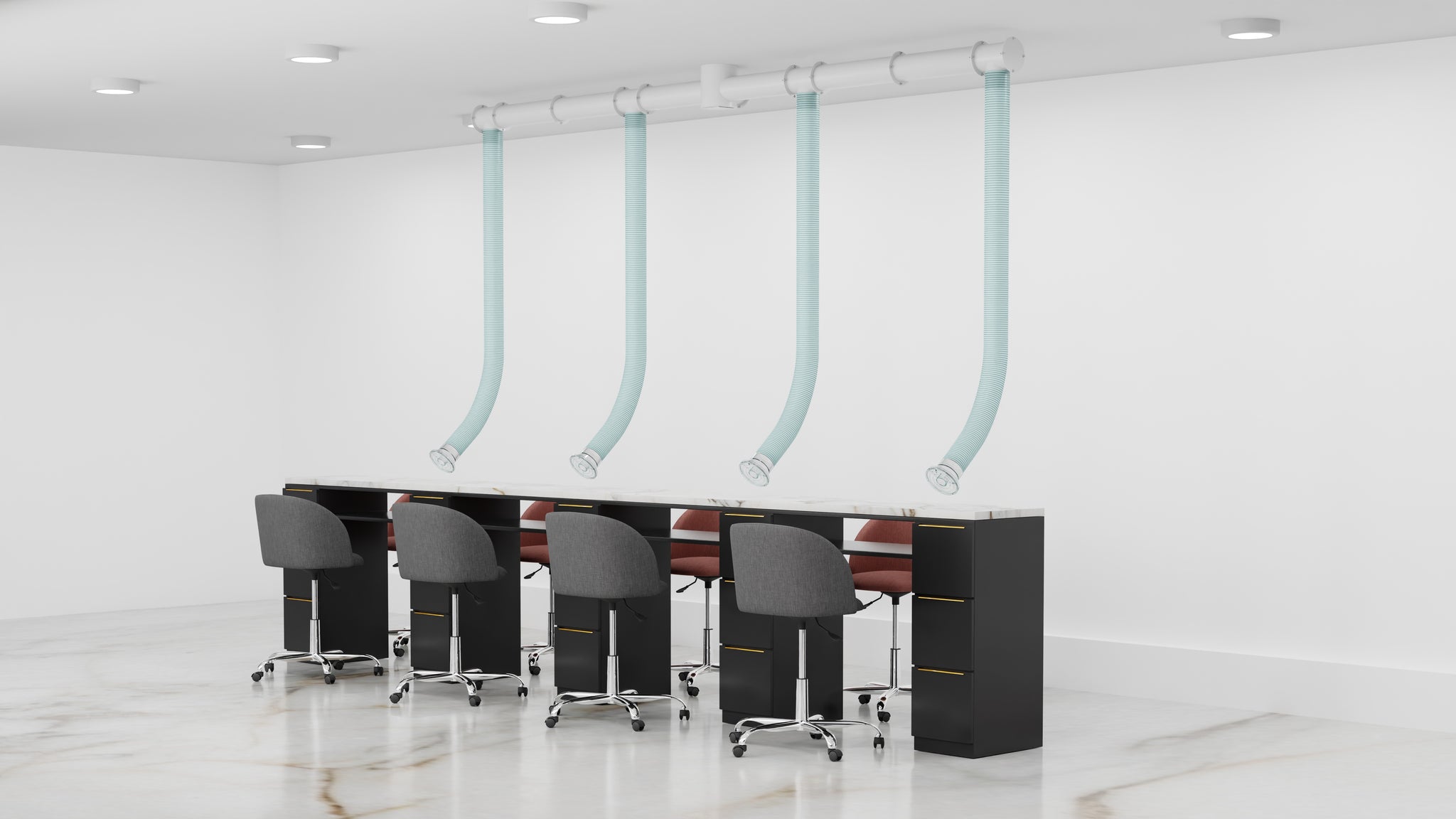

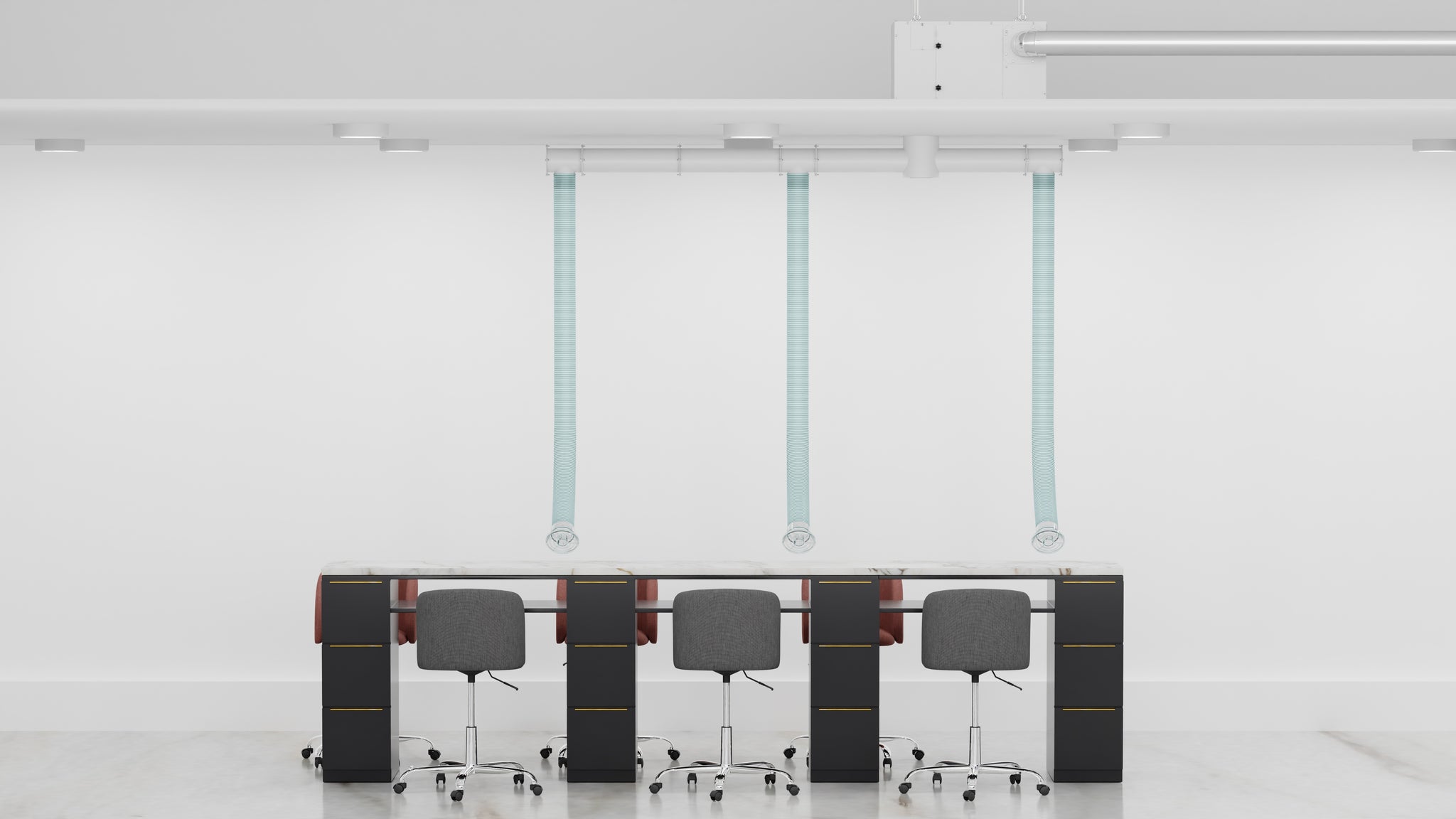

HealthyAir Ceiling-Mount Local Exhaust Ventilation System for Quad Station Source Capture
From $5,245.00
/
White
Black
Available in 2 colors
in stock, ready to ship

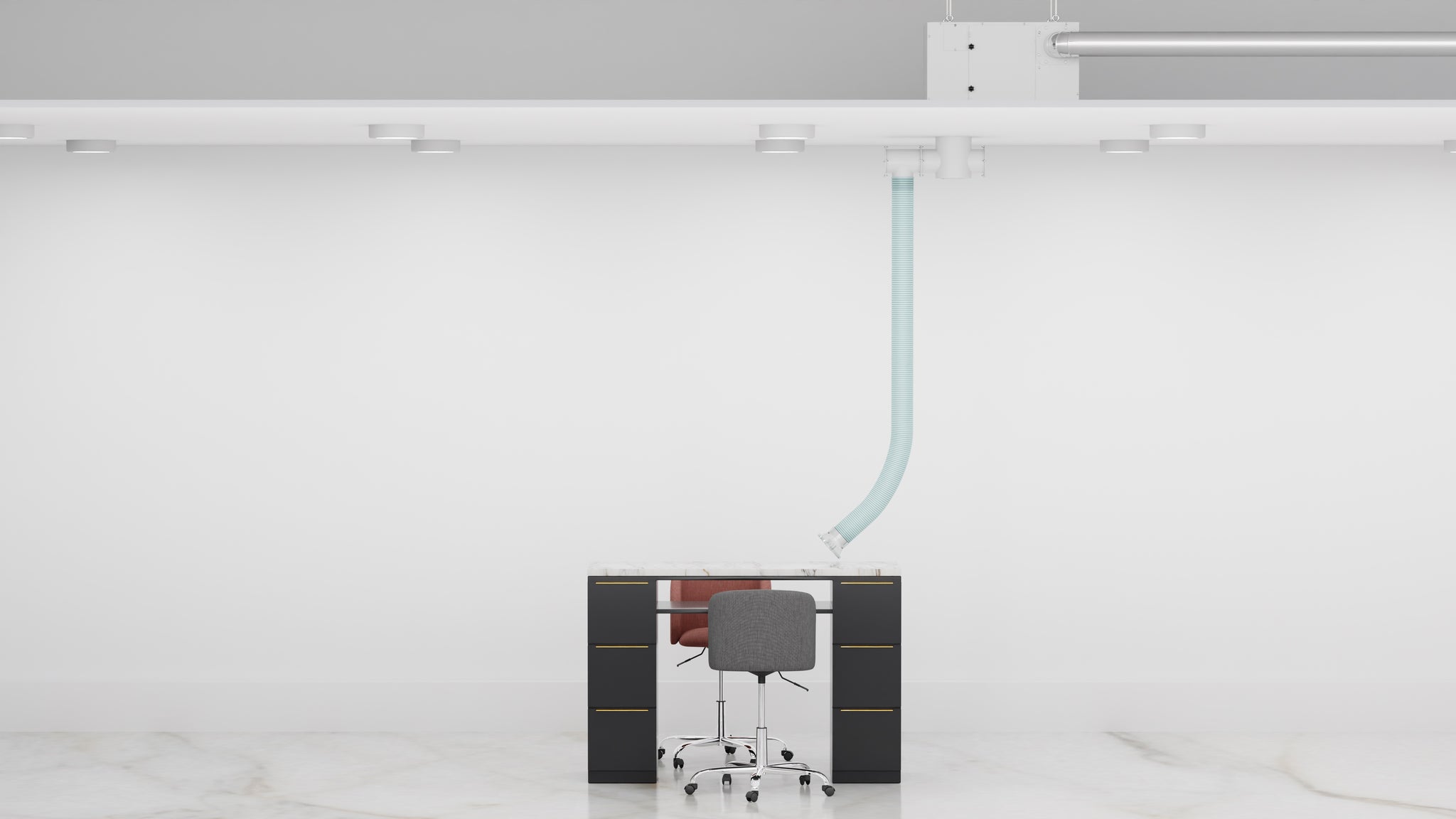

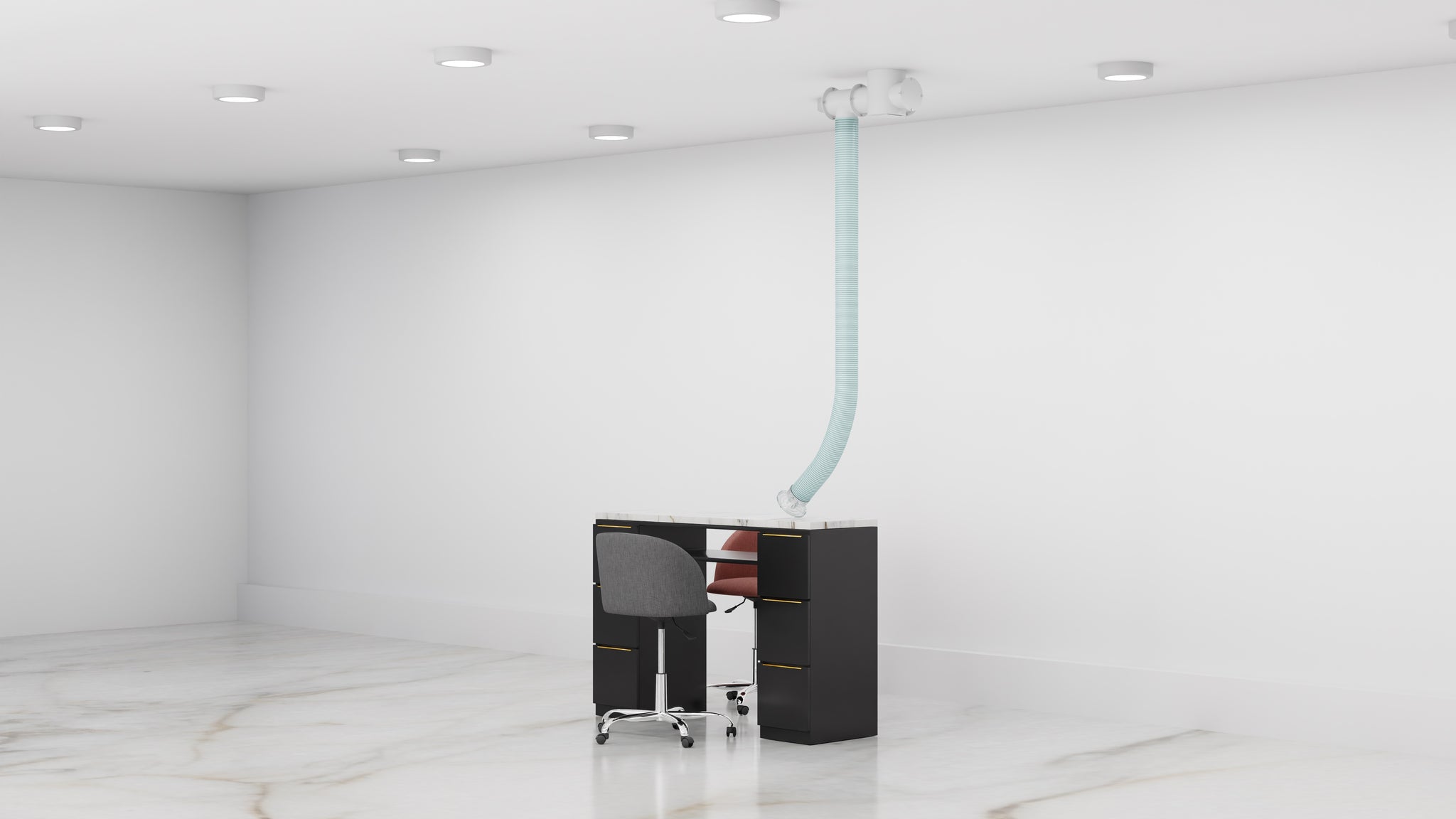

HealthyAir Ceiling-Mount Local Exhaust Ventilation System for Single Station Source Capture
From $2,757.00
/
White
Black
Available in 2 colors
in stock, ready to ship
HealthyAir Nail Salon Source Capture Air Purifier | Dual Station
From $1,721.00
/
White
Black
Cyan
Available in 3 colors
in stock, ready to ship

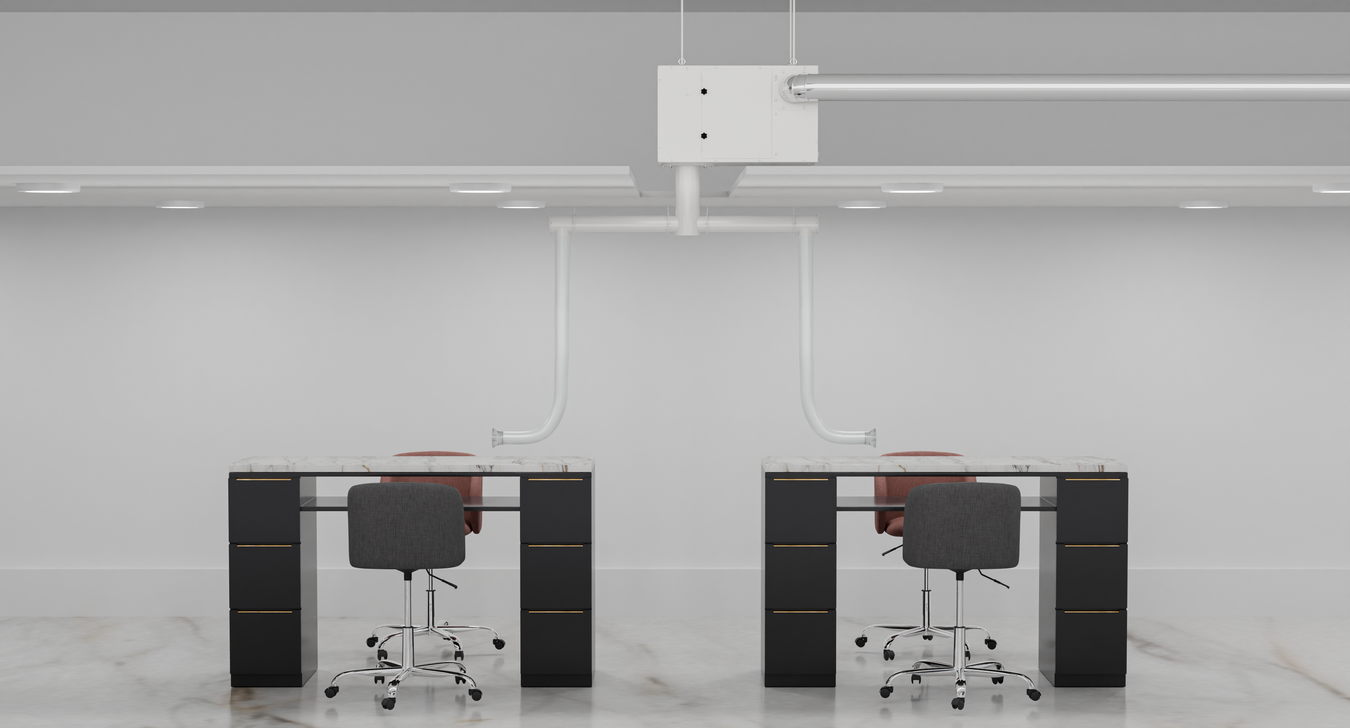

HealthyAir Ceiling-Mount Source Capture System - Dual Station
From $3,034.00
/
White
Black
Available in 2 colors
in stock, ready to ship
HealthyAir Nail Salon Source Capture Air Purifier | Single Station
From $1,652.00
/
White
Black
Gray
Available in 3 colors
in stock, ready to ship
Designed for Nail Salon Ventilation Code
Nail Salon Ventilation
Inadequate ventilation exposes nail technicians to hazardous chemicals. About 30 such chemicals, including toluene and formaldehyde, are commonly found in nail products, leading to immediate discomfort and potential long-term health issues.
The risk varies based on exposure and susceptibility. Implementing Source Capture and Local Exhaust Ventilation Systems, following OSHA guidelines, reduces exposure and ensures a safer environment.
Nail Salon Ventilation Requirements by State
Frequently Asked Questions
Have questions? Contact us for additional information and personalized assistance.
What is the proper ventilation for a nail salon?
Nail salons must comply with IMC 2015-2024 standards, requiring a source capture ventilation system at each manicure and pedicure station. A minimum exhaust rate of 50 cubic feet per minute (cfm) is required, with exhaust inlets positioned no more than 12 inches horizontally and vertically from the point of chemical application. HealthyAir® Source Capture Systems ensure compliance by effectively capturing and exhausting hazardous air contaminants and nail salon chemical pollutants.
What is a Source Capture System?
A Source Capture System collects harmful dust, fumes, and chemicals directly at the intake air point, preventing them from dispersing into the general salon air. This system helps meet nail salon ventilation code and local building code requirements, protecting workers from hazardous pollutants and ensuring the air remains clean and fresh.
What are the benefits of using Source Capture Systems?
Efficient Pollutant Removal: Captures a concentrated volume of a hazardous air contaminant before it's dispersed into the salon air.
Improved Air Quality: Reduces exposure to harmful VOCs and dust, ensuring the air is consistently fresh for employees and customers.
Compliance with OSHA and IMC Codes: Meets OSHA ventilation standards and International Mechanical Code (IMC) requirements for nail salon ventilation.
What is Outside Ventilation (Local Exhaust Ventilation)?
Outside Ventilation, or Local Exhaust Ventilation (LEV), captures harmful contaminants at the source and exhausts them outdoors. HealthyAir Source Capture Systems are engineered to meet these exhaust system requirements, ensuring compliance with IMC and local code regulations for nail salon ventilation.
Outside Ventilation Source Capture Local Exhaust Ventilation Systems
How do I set up HealthyAir Portable Systems for Recirculating Ventilation?
Setting up portable systems is quick and easy:
- Unbox the unit.
- Remove plastic wrapping from the filter.
- Attach the caster wheels and the extraction hose.
- Plug into a standard wall outlet.
- Begin operating within 15-20 minutes.

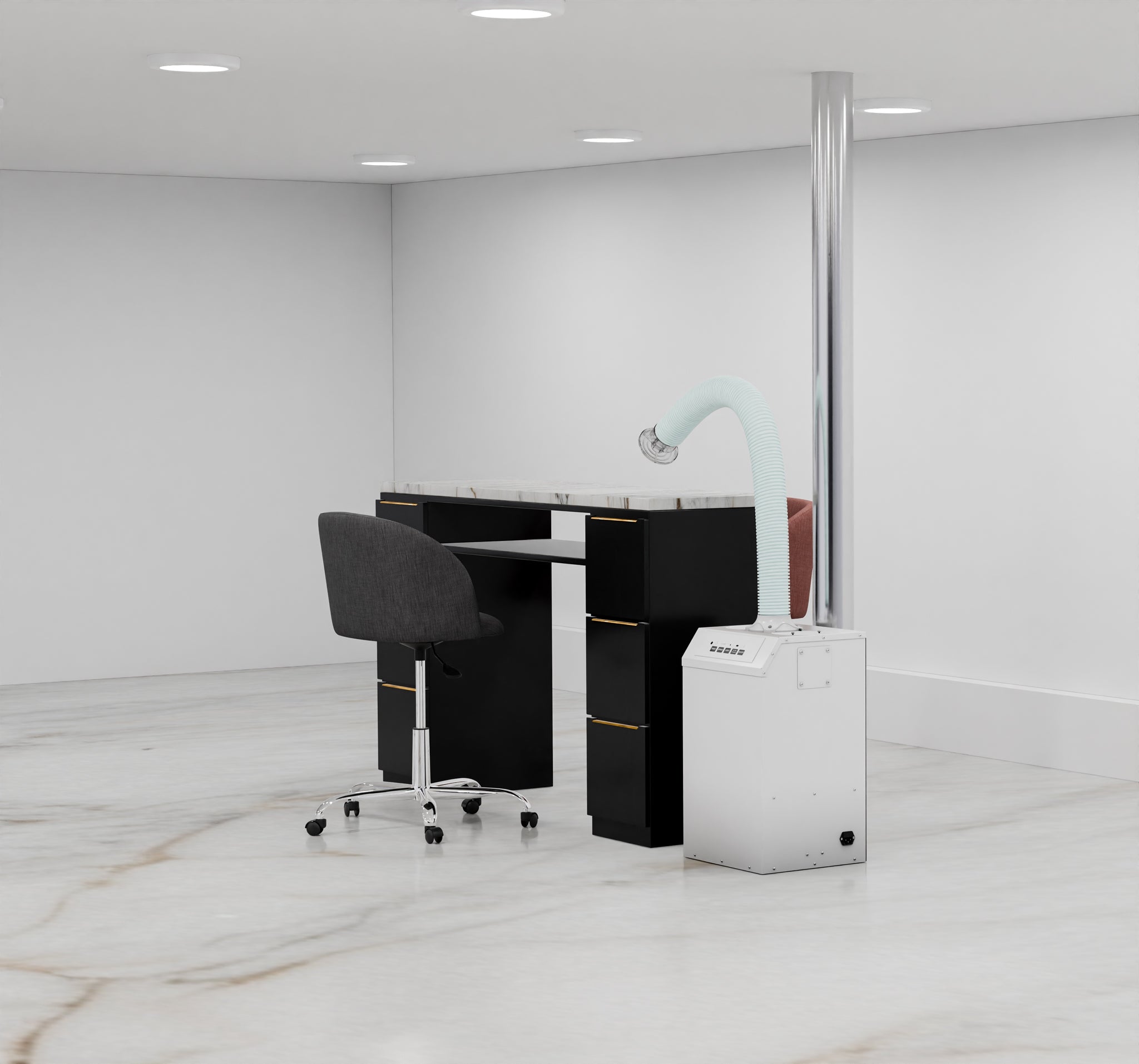

What is the installation process for HealthyAir Floor-Mount Systems for Outside Ventilation?
Setup process includes:
- Unbox the unit.
- Remove plastic wrapping from the filter.
- Attach the outlet flange, base plate and the extraction hose.
- Set the unit in the desired location and connect the exhaust duct to the outlet flange.
- Plug in and begin operation.
Setup takes approximately 20-30 minutes once the exhaust duct is installed and provided for connection to the unit.
What is the installation process for HealthyAir Ceiling-Mount Systems for Outside Ventilation?
Installation process includes:
- Unbox the unit.
- Attach the eye-bolt for suspension.
- Secure the unit to the ceiling structure.
- Hard-wire the unit for electrical power.
- Connect the exhaust duct to the outlet of the unit.
- Connect the extraction hose.
- Power on and begin operation.
Installation takes 1-2 hours once the exhaust duct is installed and provided for connection to the unit, and requires a licensed electrician/HVAC contractor.
What is the installation process for HealthyAir Ceiling-Mount Systems for Recirculating Ventilation?
Installation process includes:
- Unbox the unit.
- Attach the eye-bolt for suspension.
- Secure the unit to the ceiling structure.
- Hard-wire the unit for electrical power.
- Connect the extraction hose.
- Power on and begin operation.
Installation takes 1-2 hours and requires a licensed electrician/HVAC contractor.
What is the installation process for HealthyAir Wall-Mount Systems for Outside Ventilation?
Installation process includes:
- Unbox the unit.
- Attach the wall-mount kit brackets to the unit and wall.
- Secure the unit to the wall.
- Hard-wire the unit for electrical power.
- Attached the outlet flange to the unit.
- Connect the exhaust duct to the outlet of the unit.
- Connect the extraction hose.
- Power on and begin operation.
Installation takes 1-2 hours once the exhaust duct is installed and provided for connection to the unit, and requires a licensed electrician/HVAC contractor.
