HealthyAir Ceiling-Mount Fume Extractor | Concealed-Mount

Efficient Air Filtration for Maximized Workspace

Enhance your work environment with our Ceiling-Mount Source Capture Fume Extractor — a powerful, space-saving solution designed to capture and filter harmful fumes, smoke, and airborne particulates directly at the source.

Perfect for soldering stations, laboratories, and commercial workshops, this unit ensures cleaner air without sacrificing valuable floor or bench space.

Key Features:

• High-Efficiency Patented eHEPA Filtration:

  Patented eHEPA® technology filters airborne contaminants with a highly efficient and innovative 3-stage process, resulting in a safer work environment with a healthier breathing zone for occupants.

  As contaminated air passes through the unit, the Pre-Filter, eHEPA® Filter, and Enhanced Carbon Catalytic Filter work in conjunction to collect and deactivate airborne particles; including dust, smoke, allergens, gasses, odors, and VOCs.

  HealthyAir® System 3-stage process collectively utilizes the 5 filtration methods of Sieving, Direct impact, Inertial Impaction, Diffusion, and Electrostatic.

• Flexible Capture Arm: Flexible self-supporting Extraction Arm with various length options and 16.5" dia. Hood enables precise positioning for source capture and reduction of airborne contaminant spread.

• Quiet, High-Performance Motor: Concealed ceiling-mount design enables strong airflow with low operating noise, ensuring a productive and comfortable workspace.

• Space-Saving Design: Ceiling-mounted for maximum floor clearance and optimized workflow in crowded or compact environments.

• Smart Control Options: Optional remote control or wall-mounted panel with adjustable airflow settings and filter replacement alerts.

Applications:

Ideal for use in electronics manufacturing, welding operations, chemical processing, and any environment where localized air purification is essential.

Breathe easier, work safer — upgrade to the Ceiling-Mount Fume Extractor and take control of your air quality from above.

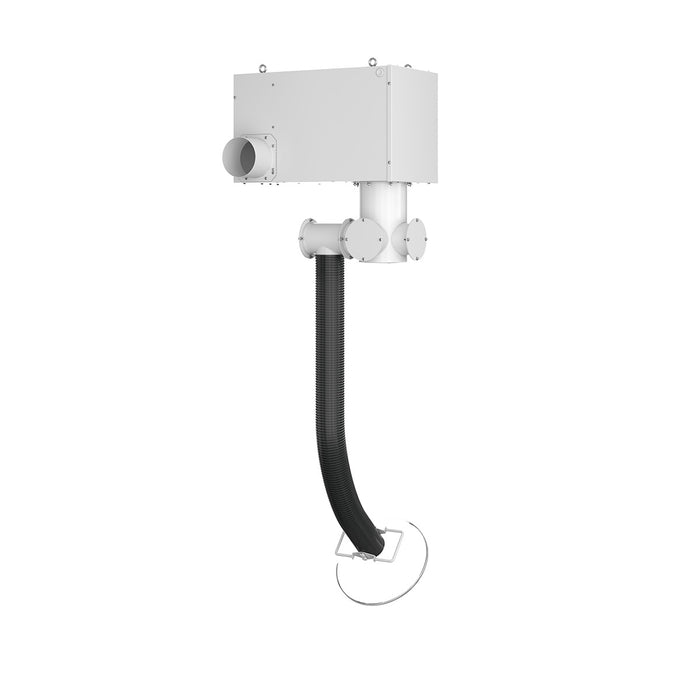

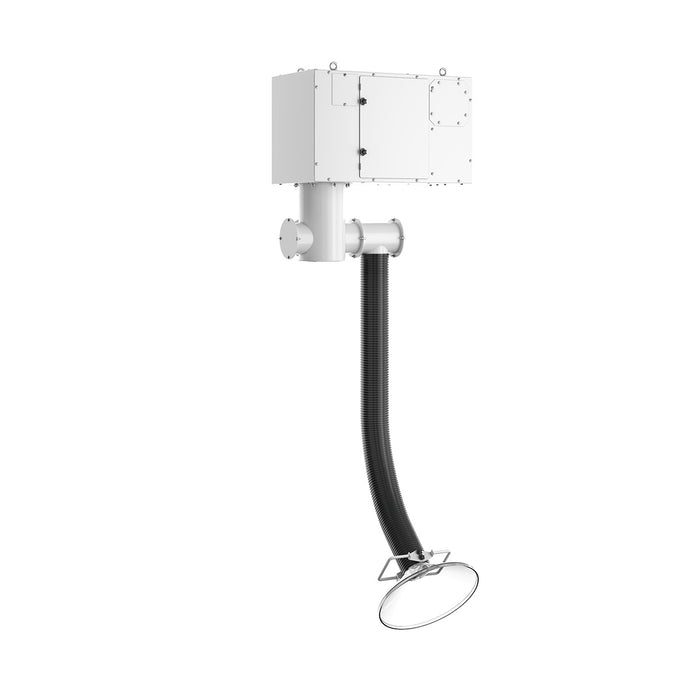

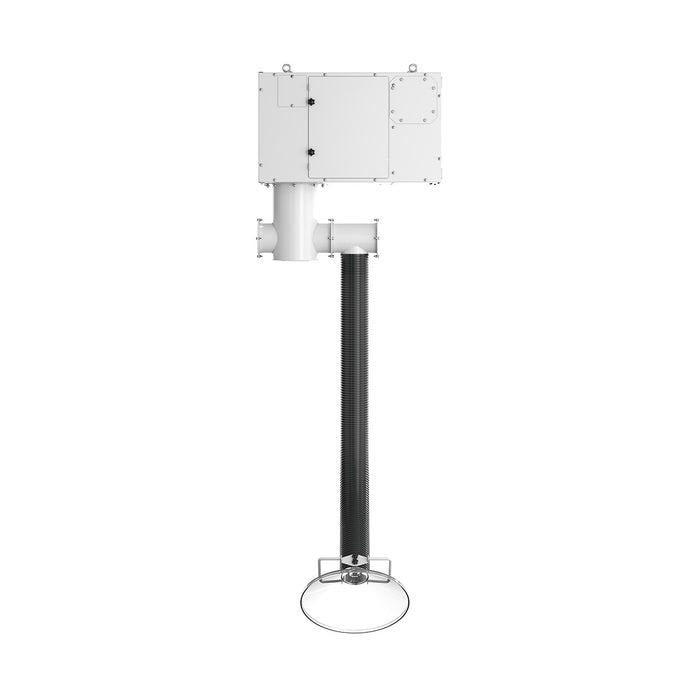

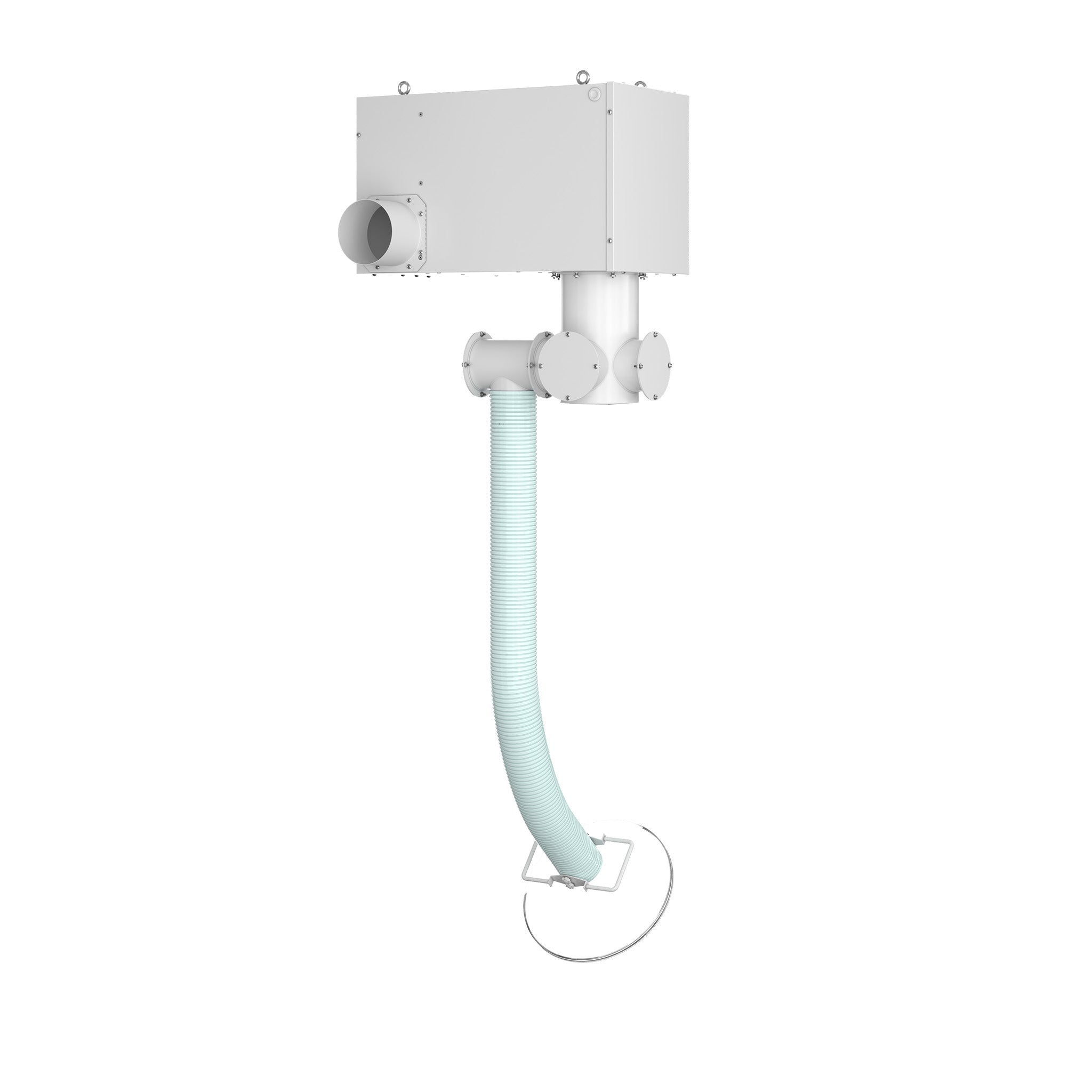

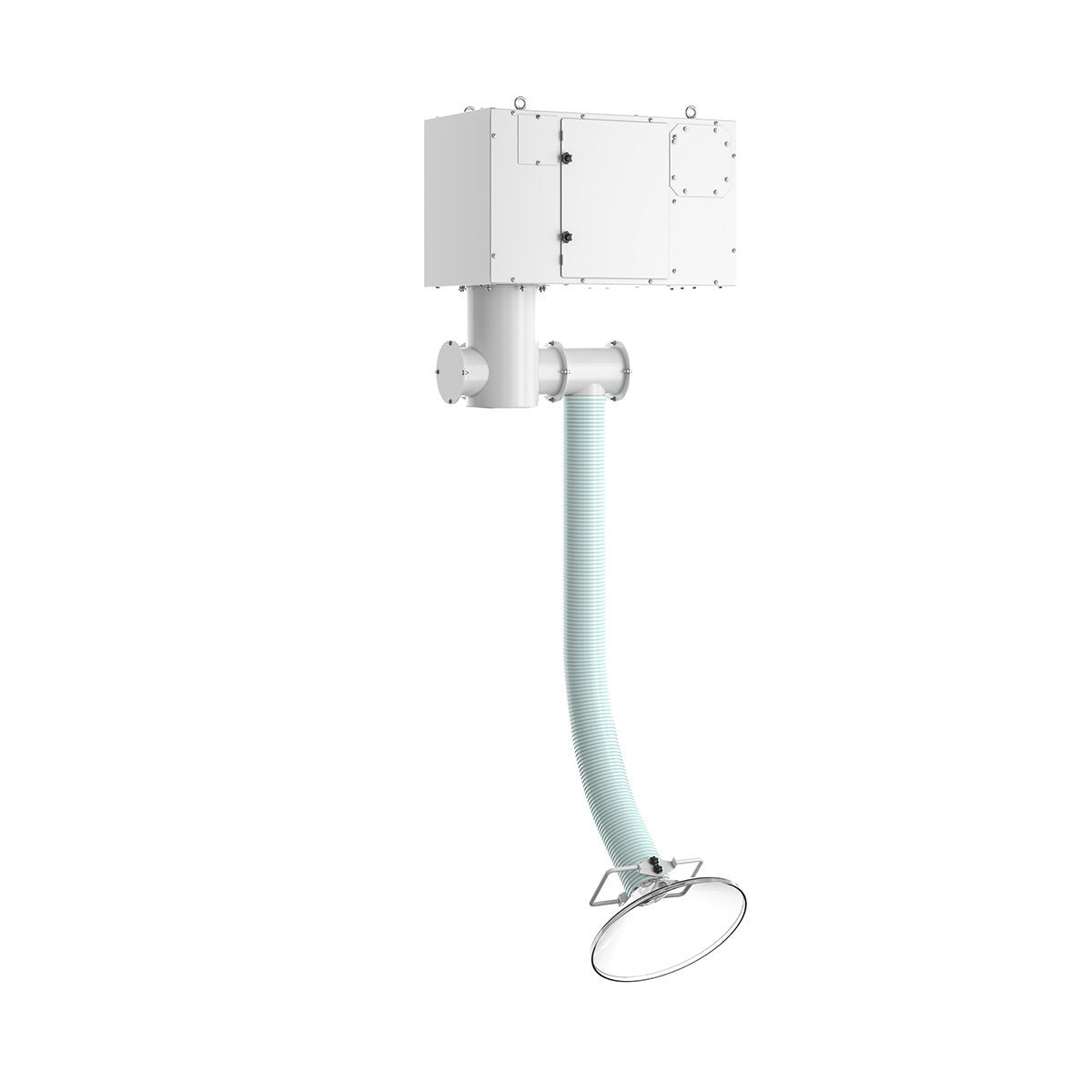

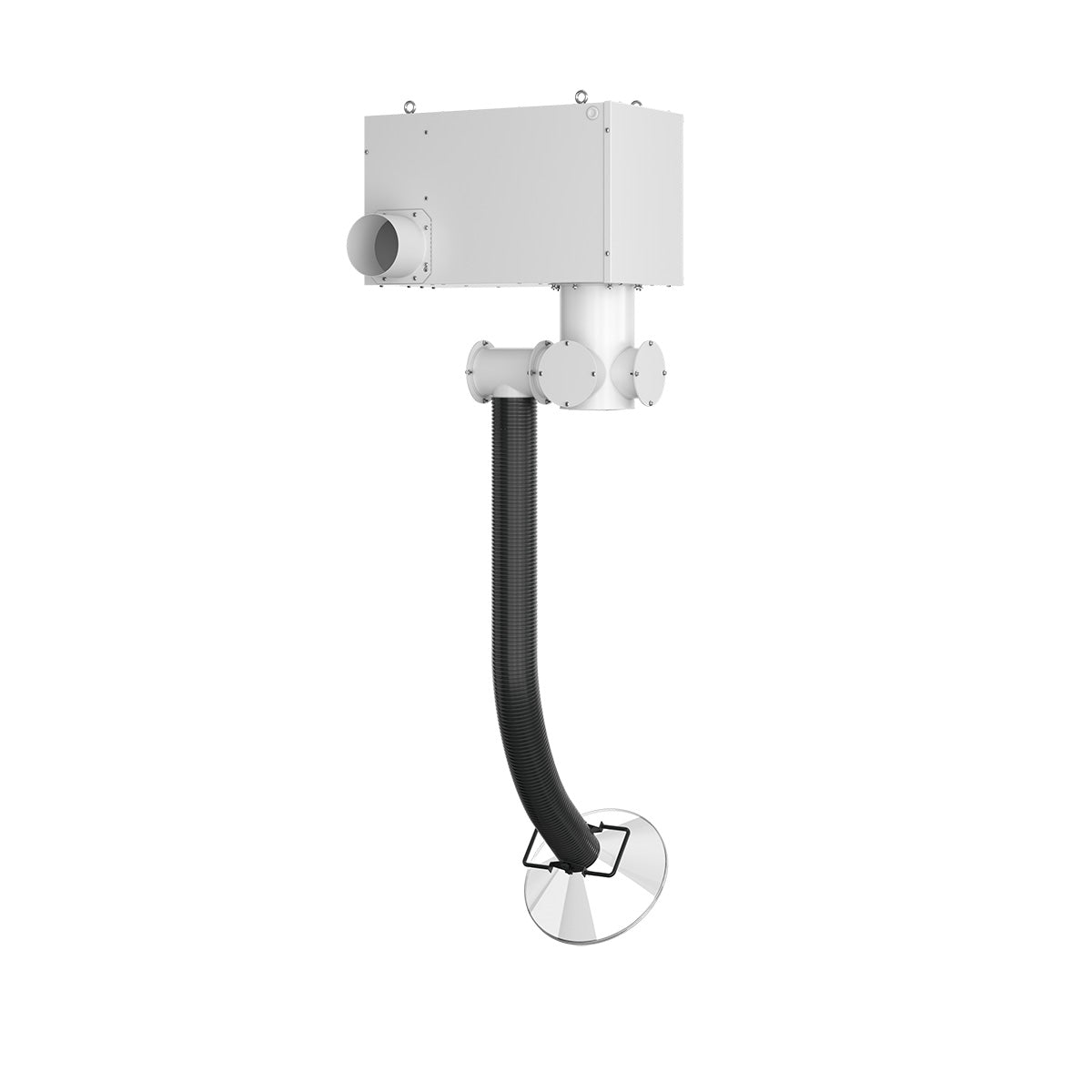

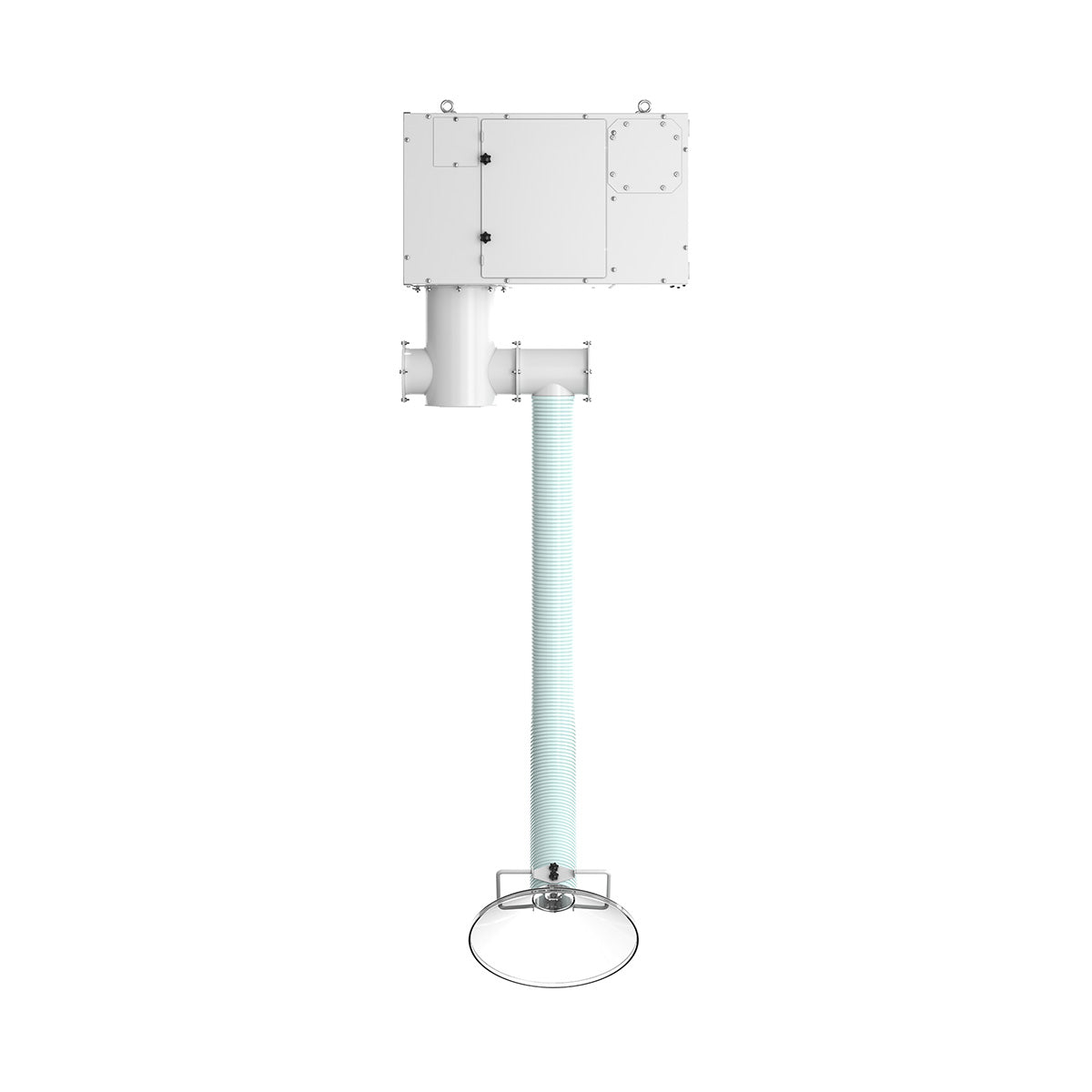

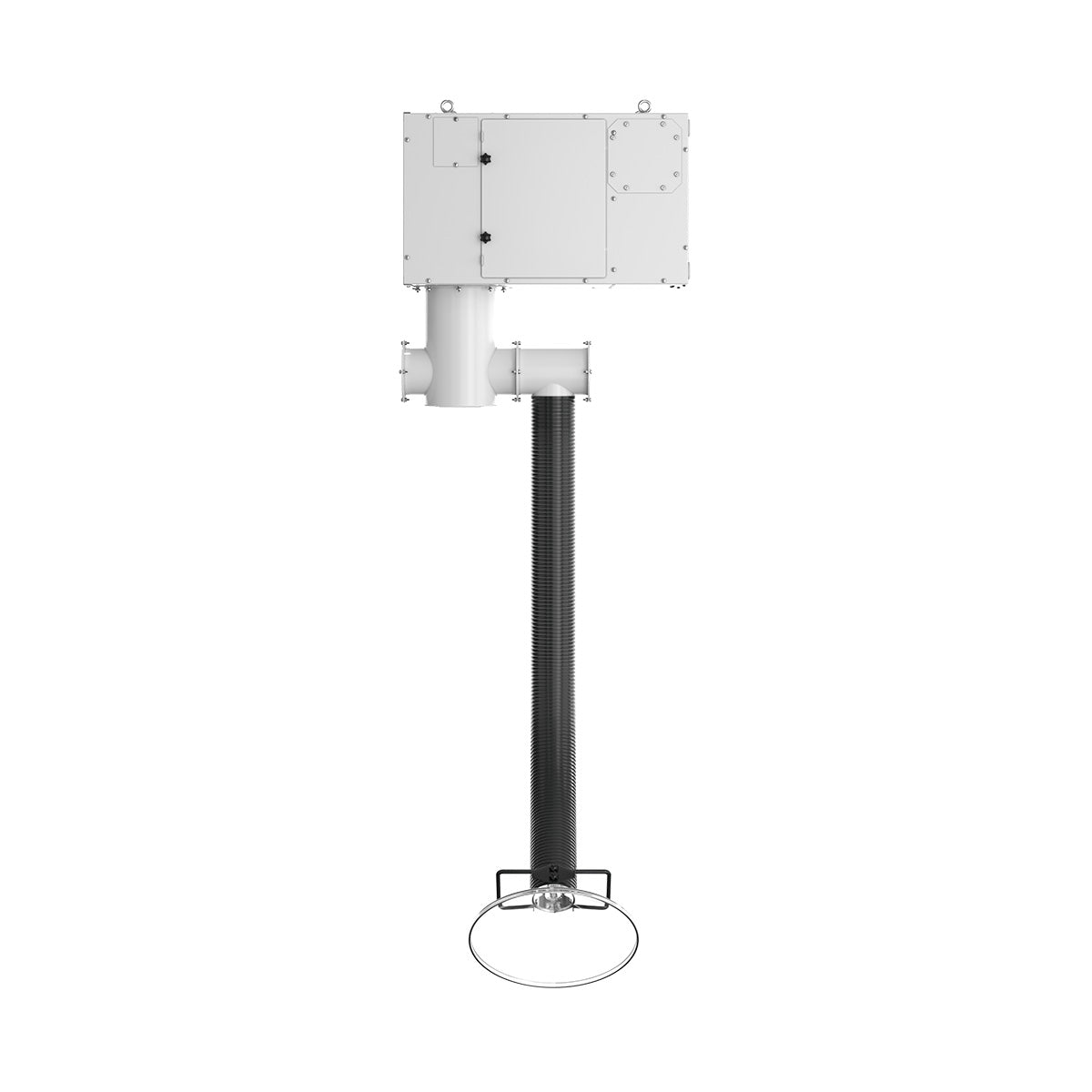

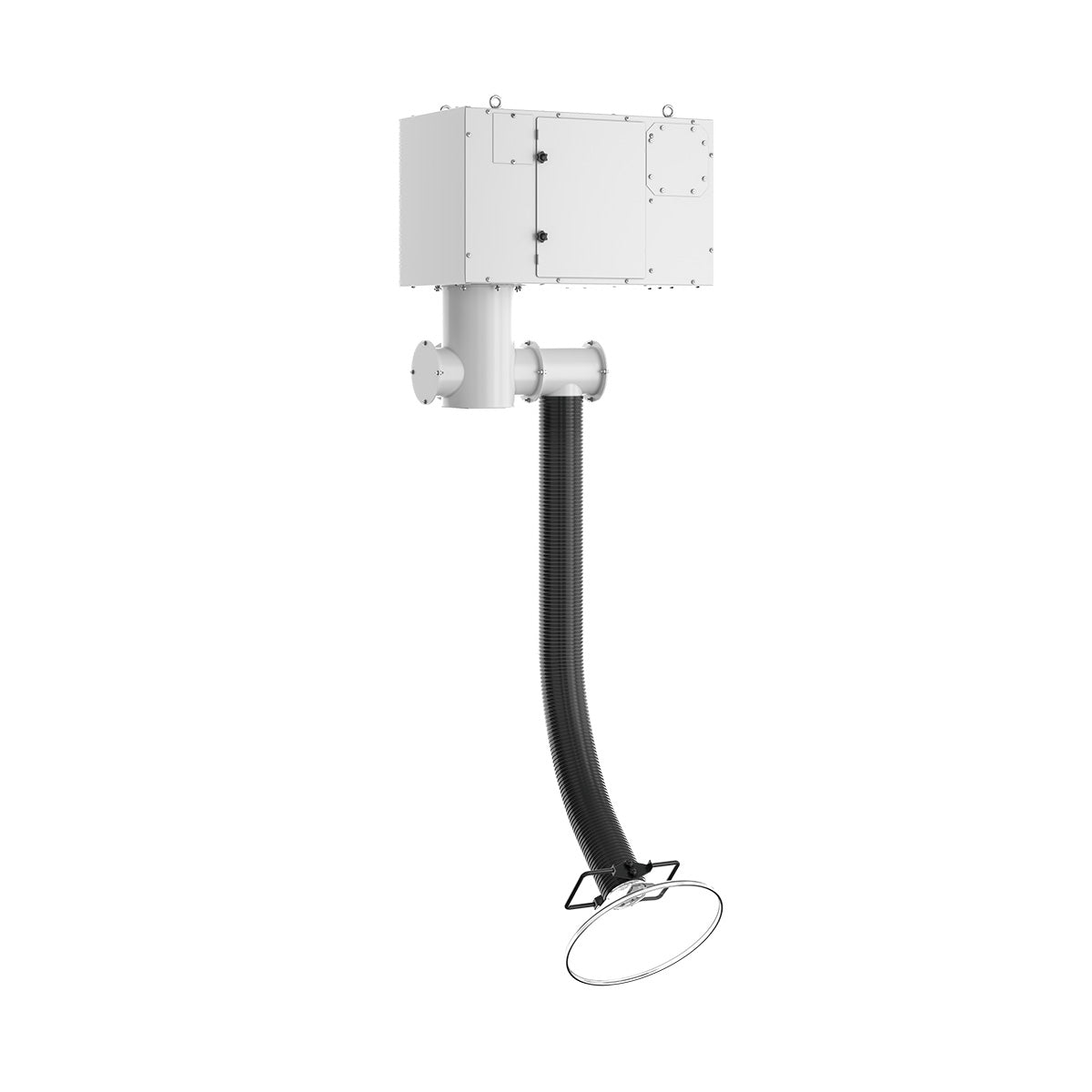

• (1) HealthyAir^® Ceiling-Mount Source Capture Fume Extractor Single Station system is capable of serving (1)  workstation.

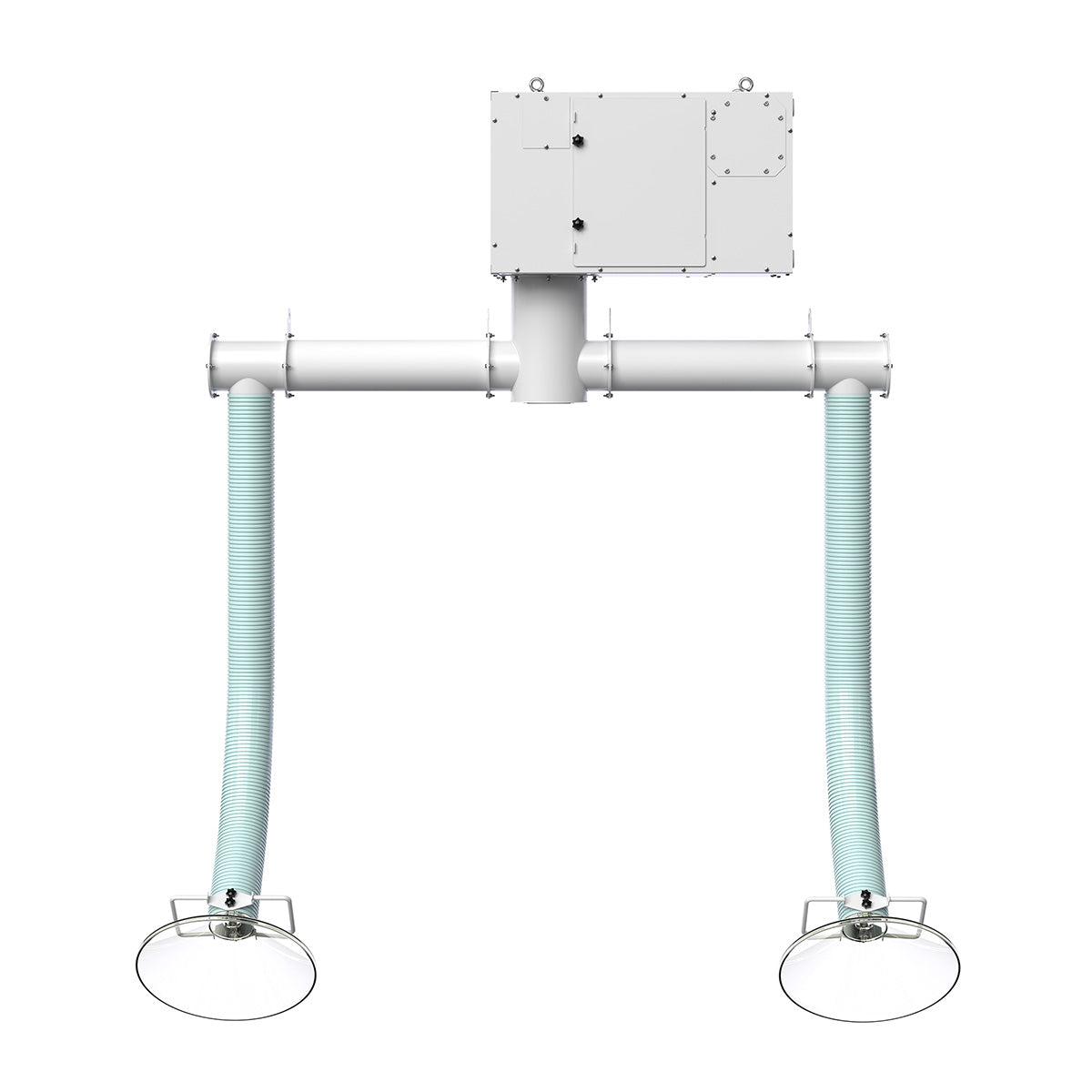

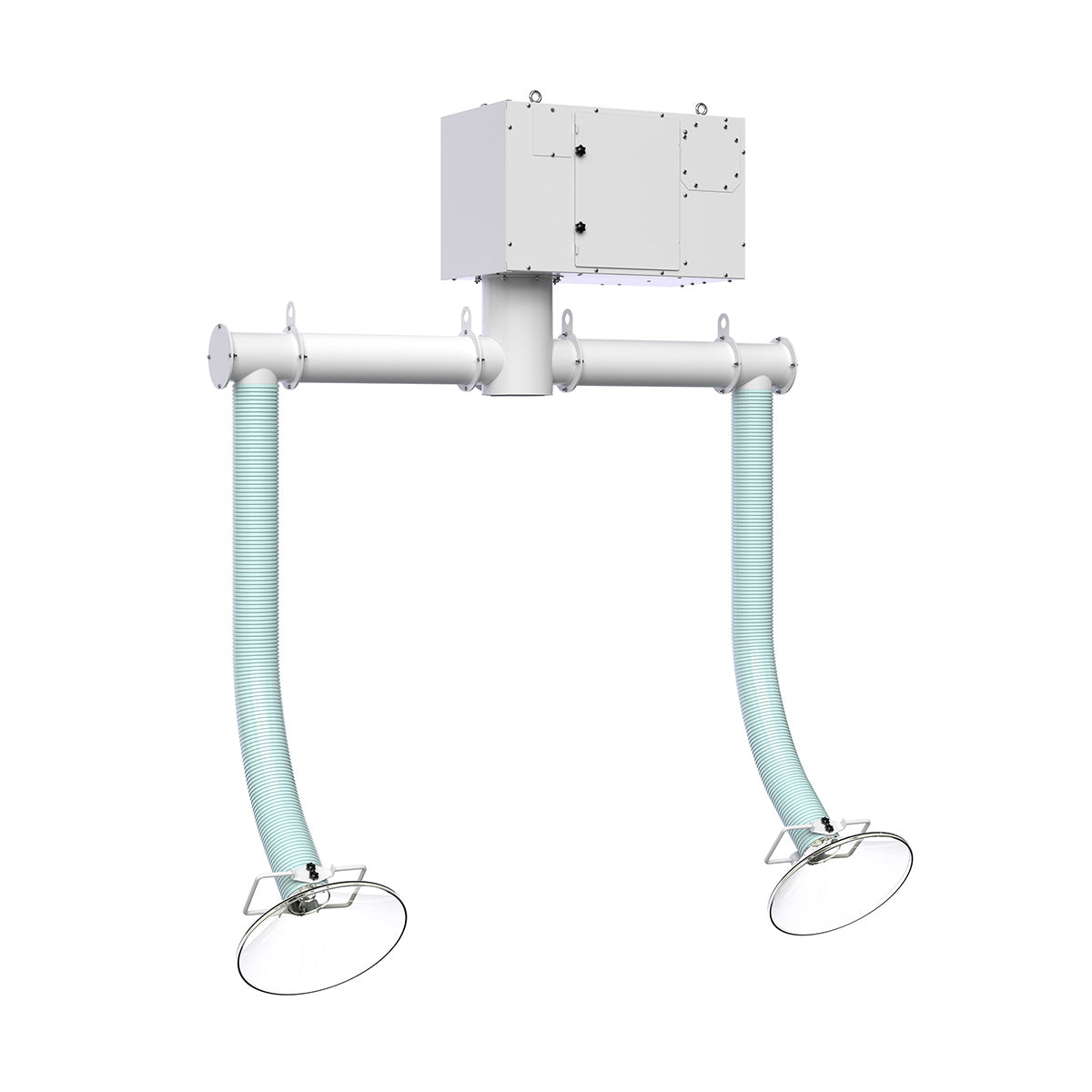

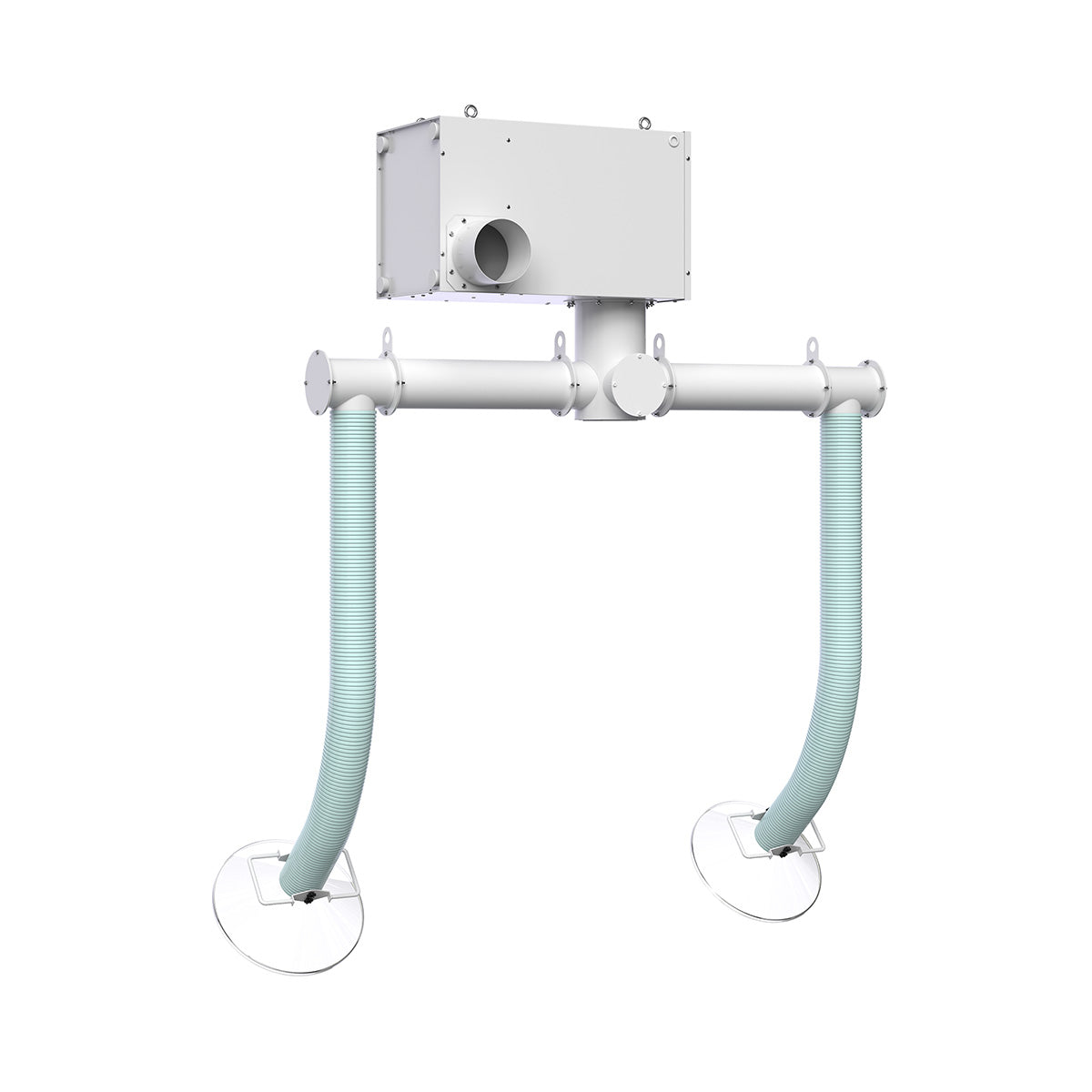

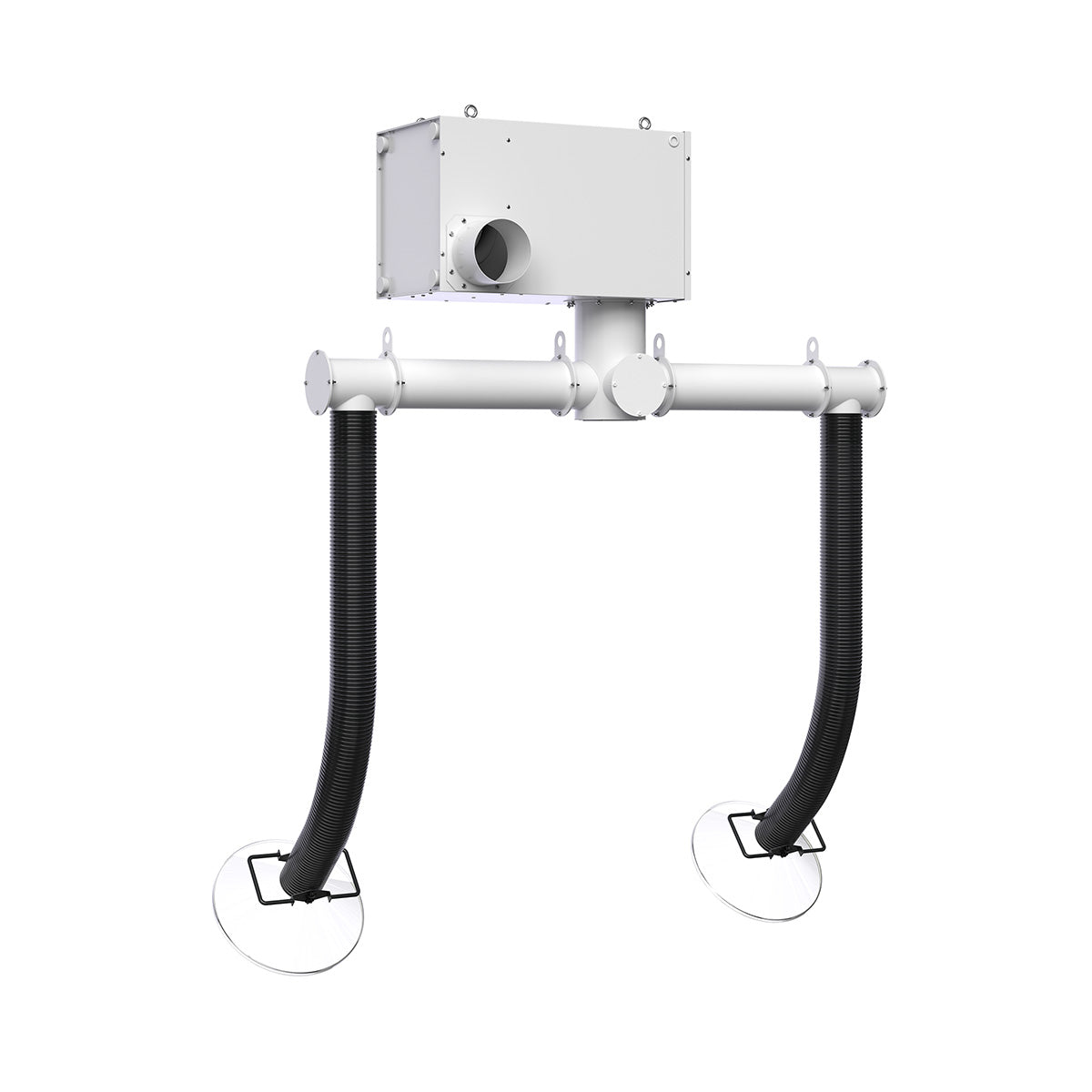

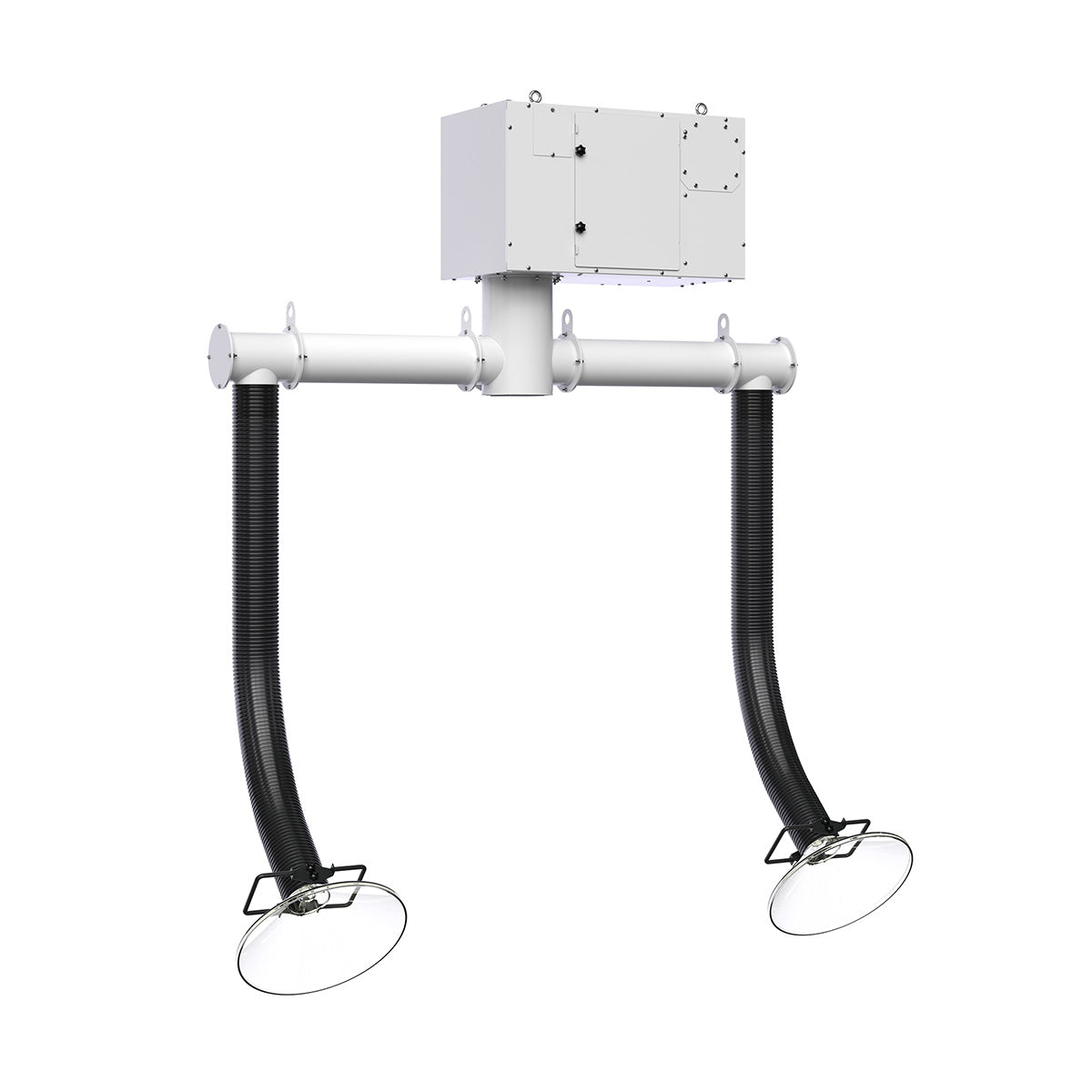

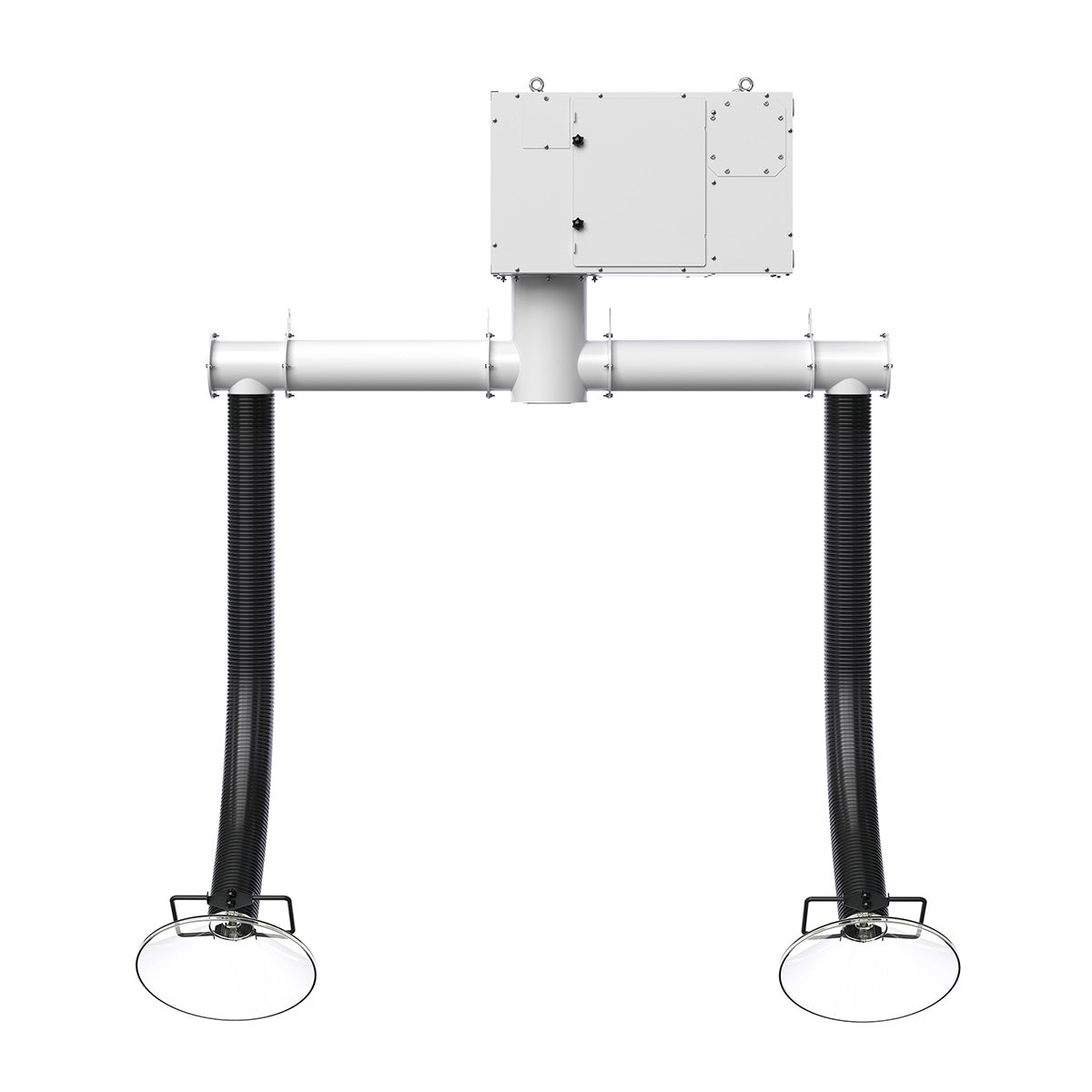

• (1) HealthyAir^® Ceiling-Mount Source Capture Fume Extractor Dual Station system is capable of serving (2) adjacent workstations.

Recirculating or Outside Ventilation Configuration

The HealthyAir^® Ceiling-Mount Source Capture Fume Extractor may be operated as a Recirculating System or as an Outside Venting Local Exhaust Ventilation System.

Recirculating Ventilation

Recirculating Ventilation means the unit is designed to take in contaminated air though the extraction hose, filter contaminants, discharge and reintroduce purified air from the outlet port back into the facility.

Outside Ventilation - Local Exhaust Ventilation System

When configured for Outside Ventilation, the system is designed to take in contaminated air though the extraction hose, filter contaminants, and discharge treated air out of the facility via an exhaust duct connection to the 5" diameter outlet port of the unit.

There are (2) outlet ports locations on the unit, which enable the exhaust duct to be connected to the exhaust port that offers the most convenient ducting arrangement.

Weight, Dimensions & Installation

Engineered for easy installation, this concealed ceiling-mount unit is designed to be installed and suspended in the plenum space of any drop ceiling with a minimum clearance of 18".

The approximate weight and base dimensions of the Base Unit is: 65 lbs. - 23”l x 12”w x 14”h

The Source Capture Hood has a 16.5" diameter.

Depending on the ceiling-height, the appropriate length for the Extraction Hose of the Extraction Arm can be selected.  The standard Extraction Hose length options are 5’, 6', or 7'L.

For custom length extraction arm hose options please contact us for pricing and availability information.

Operation

By easily adjusting the flexible hose, the hoods of the extraction arms can be strategically positioned, approximately 6”-12” from the work area, to capture fumes from the emission source.

The Ceiling-Mount Source Capture Fume Extractor offers simple remote-control operation and is equipped with a three-speed fan that enables control of air flow.

Maintenance of the unit is simple and does not require the use of any special tools.

Filter Model & Replacement

Each HealthyAir^® Ceiling-Mount Source Capture System comes with (1) filter pre-installed.

The recommend filter replacement cycle is 6 months on average.  However, the need for filter replacement naturally varies depending on the frequency and nature of use.

When the unit has been in operation for 1,000-hours, the Filter Change indicator light, on the Control Panel, will begin to flash. This serves as a reminder to inspect and/or replace the filter.

The Filter Change Timer can be reset by following the reset protocol outlined in the manual.

The following replacement filter is compatible with this unit:

• HA-IFM-1111

When the unit has been in operation for 1,000-hours, the Filter Change indicator light, on the Control Panel, will begin to flash. This serves as a reminder to inspect and/or replace the filter.
