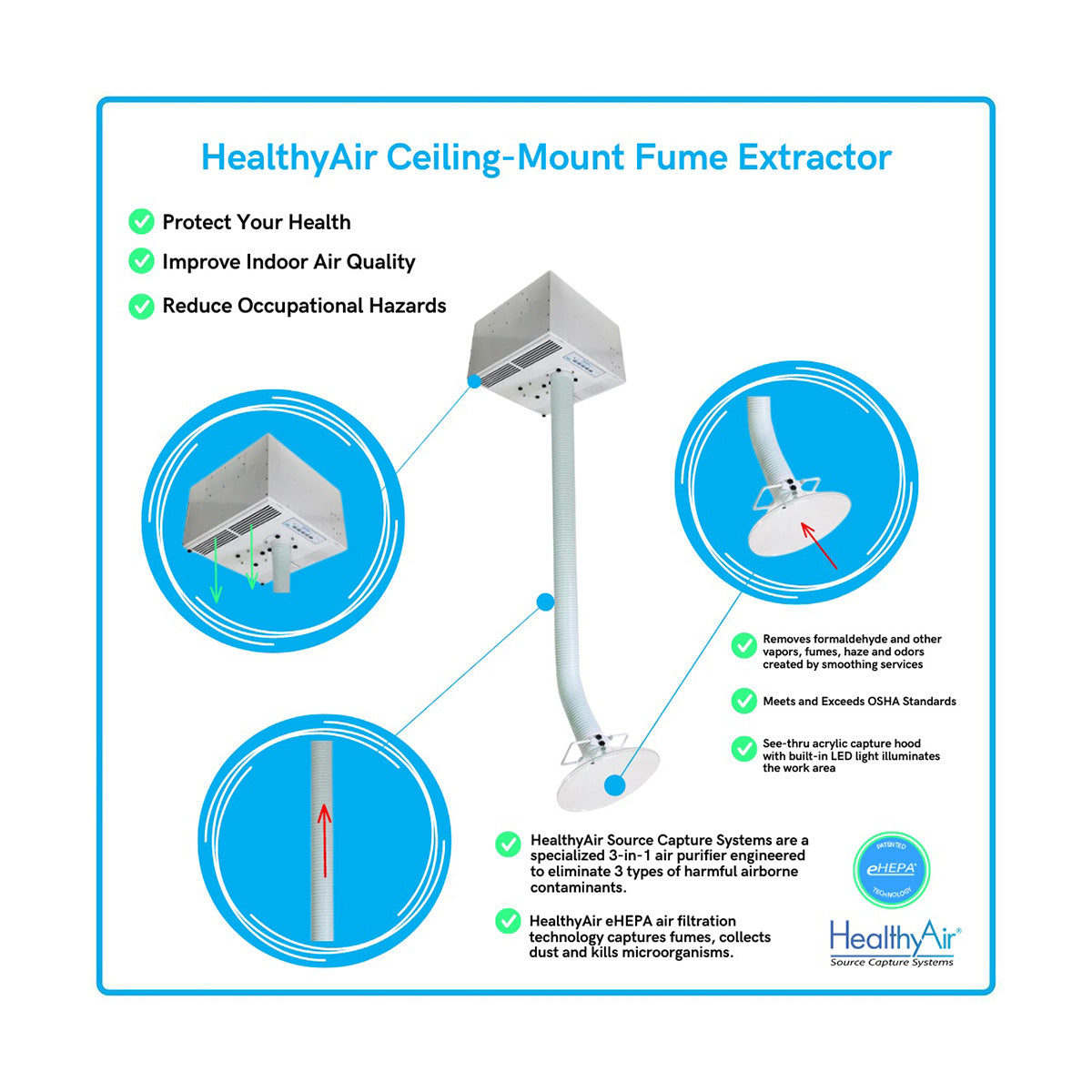

HealthyAir Ceiling-Mount Fume Extractor

Patented eHEPA® Technology

With patented eHEPA® technology, this unit effectively filter air in a highly efficient and innovative 3-stage process, resulting in a safer work environment with a healthier breathing zone for occupants.

As contaminated air passes through the unit, the Pre-Filter, eHEPA® Filter, and Enhanced Carbon Catalytic Filter work in conjunction to collect and deactivate airborne particles; including dust, smoke, allergens, gasses, odors, and VOCs.

HealthyAir® System 3-stage process collectively utilizes the 5 filtration methods of Sieving, Direct impact, Inertial Impaction, Diffusion, and Electrostatic.

Applications

The HealthyAir^® Source Capture® Ceiling-Mount System is the ideal system for use in a multitude of commercial settings, including, salons, laboratories, workstations, and more.

Recommend Use

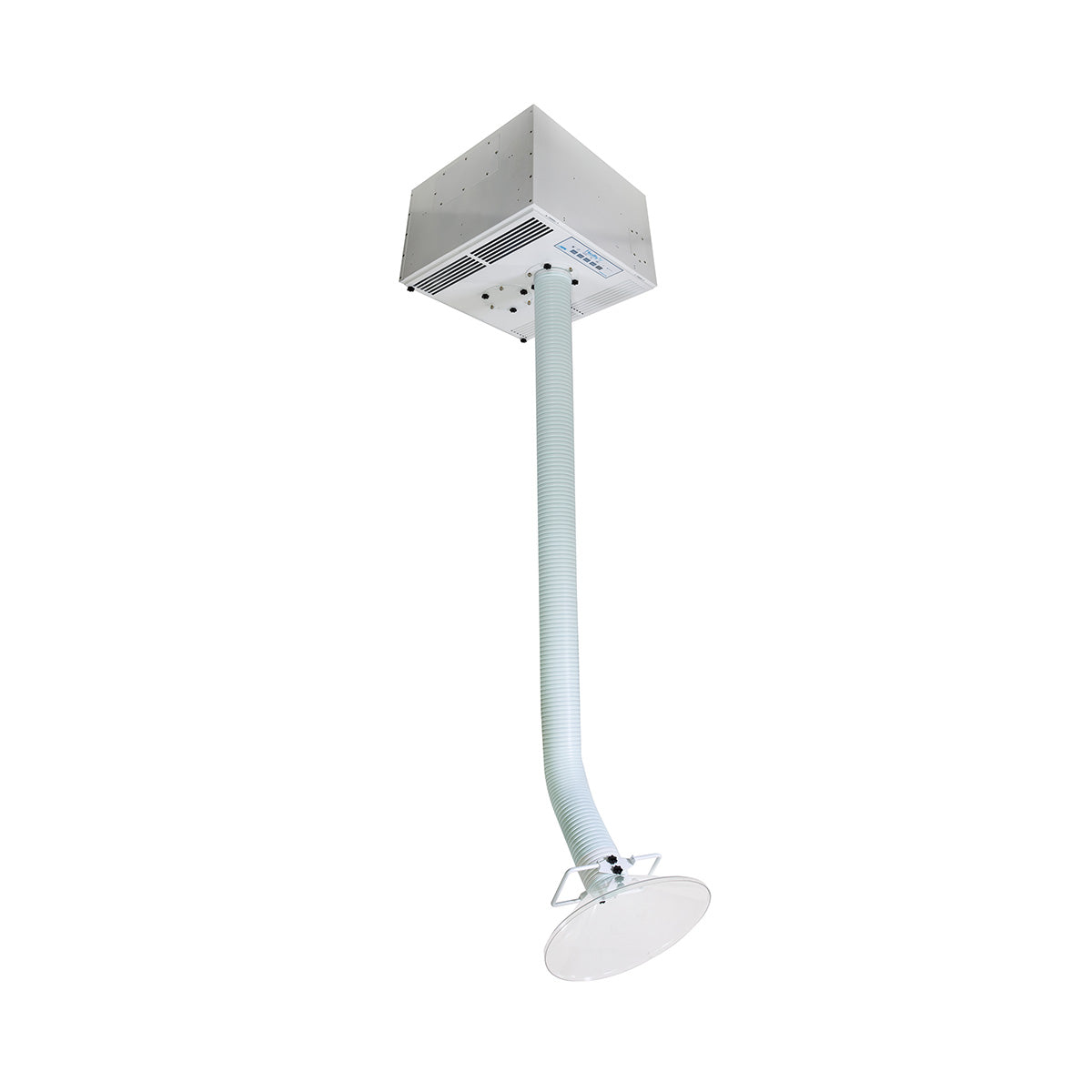

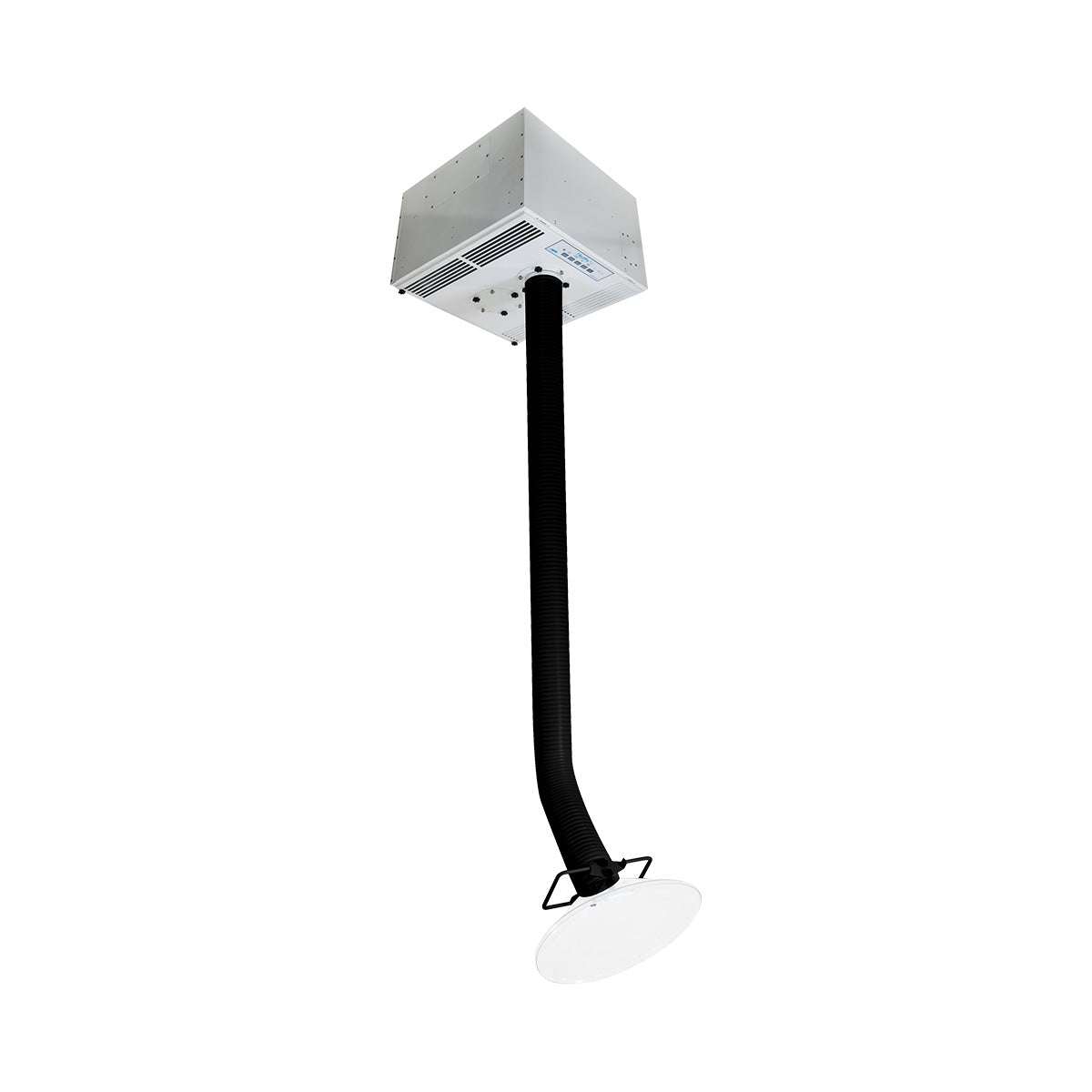

(1) HealthyAir^® Source Capture® Ceiling-Mount Single Station system is capable of serving (1)  workstation.

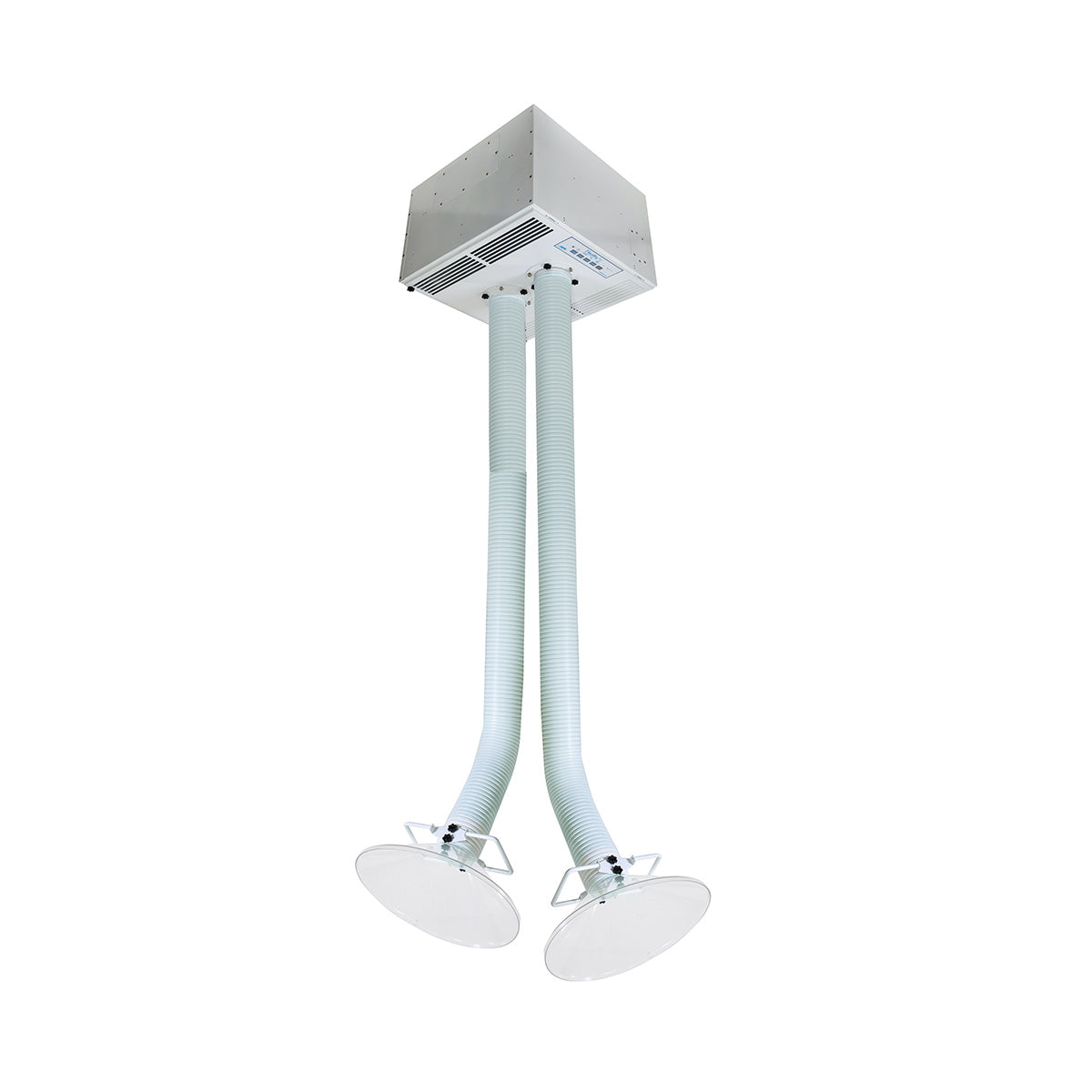

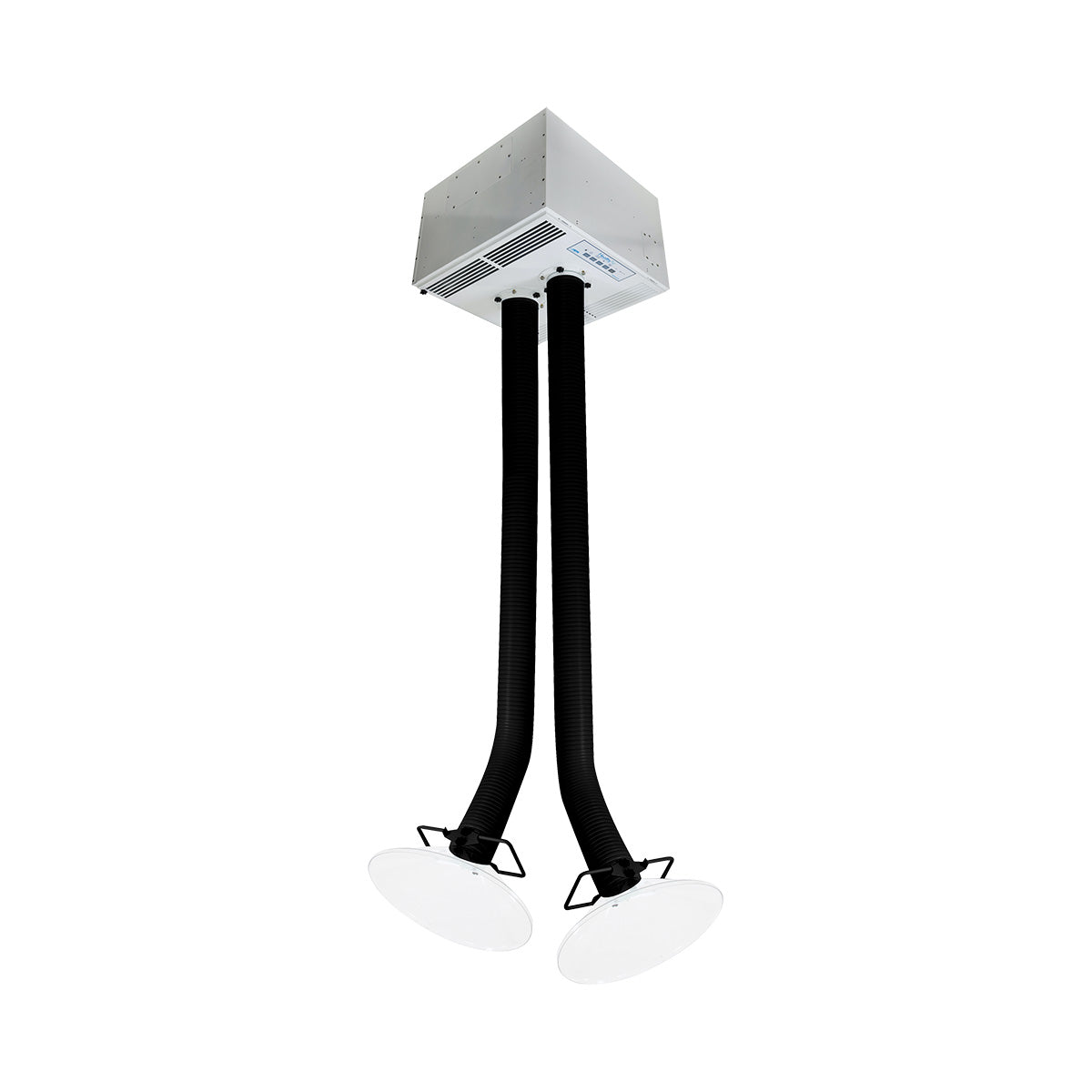

(1) HealthyAir^® Source Capture® Ceiling-Mount Dual Station system is capable of serving (2)  workstation.

Nail Salon IMC Ventilation Code Compliance

The HealthyAir^® Source Capture® Ceiling-Mount System fully complies with, and exceeds, IMC Ventilation Code requirements for Nail Salons.

Recirculating Ventilation

The HealthyAir^® Source Capture® Ceiling-Mount System may be operated as a Recirculating System or as an Outside Venting System.  The out-of-the-box default configuration of the unit is for Recirculating Ventilation.

Recirculating Ventilation means the unit is designed to take in contaminated air though the extraction hose, filter contaminants, and discharge purified air from the exhaust vent, located on the bottom of the unit, back into the facility.

Weight, Dimensions & Installation

The approximate weight and base dimensions of the unit is: 90 lbs. - 24”l x 24”w x 15”h

Engineered for easy installation, this unit mounts perfectly flush, and blends, with any drop ceiling with a standard 2'x2' panel arrangement and a minimum clearance of 18".

The standard extraction arm hose length is 6’ and is designed for salons with a ceiling height of approximately 10’.  7' length hose is also available online.

For custom length information and pricing please contact us.

Operation

By easily adjusting the flexible hose, the hoods of the extraction arms can be strategically positioned, approximately 6”-12” from the work area, to capture fumes from the emission source.

The HA-CMSC-G4-4-W offers simple remote-control operation and is equipped with a three-speed fan that enables control of air flow.

Maintenance of the unit is simple and does not require the use of any tools.

Filter Models & Replacement

The Healthy Air® Ceiling-Mount Fume Extractor utilizes the HA-SERIES-1219 replacement filter set. Each unit comes with a pre-installed set of filters.

The HA-SERIES-1219 replacement filter is used for applications that require removal of higher concentrations of VOCs and chemical fumes.

For applications that require higher airflow rates and for collection of dust, particulate and biological debris replacement filter set HA-SERIES-1219-CM is recommended.

When the unit has been in operation for 1,000-hours, the Filter Change indicator light, on the Control Panel, will begin to flash. This serves as a reminder to inspect and/or replace the filter.

The Filter Change Timer can be reset by following the reset protocol outlined in the manual.

When it is time for the filters to be changed, the face plate simply unlocks and swings open, which enables access to the drop-down filter housing.

The following replacement filters are compatible with this unit:

• HA-SERIES-1219-CM

• HA-SERIES-1219
