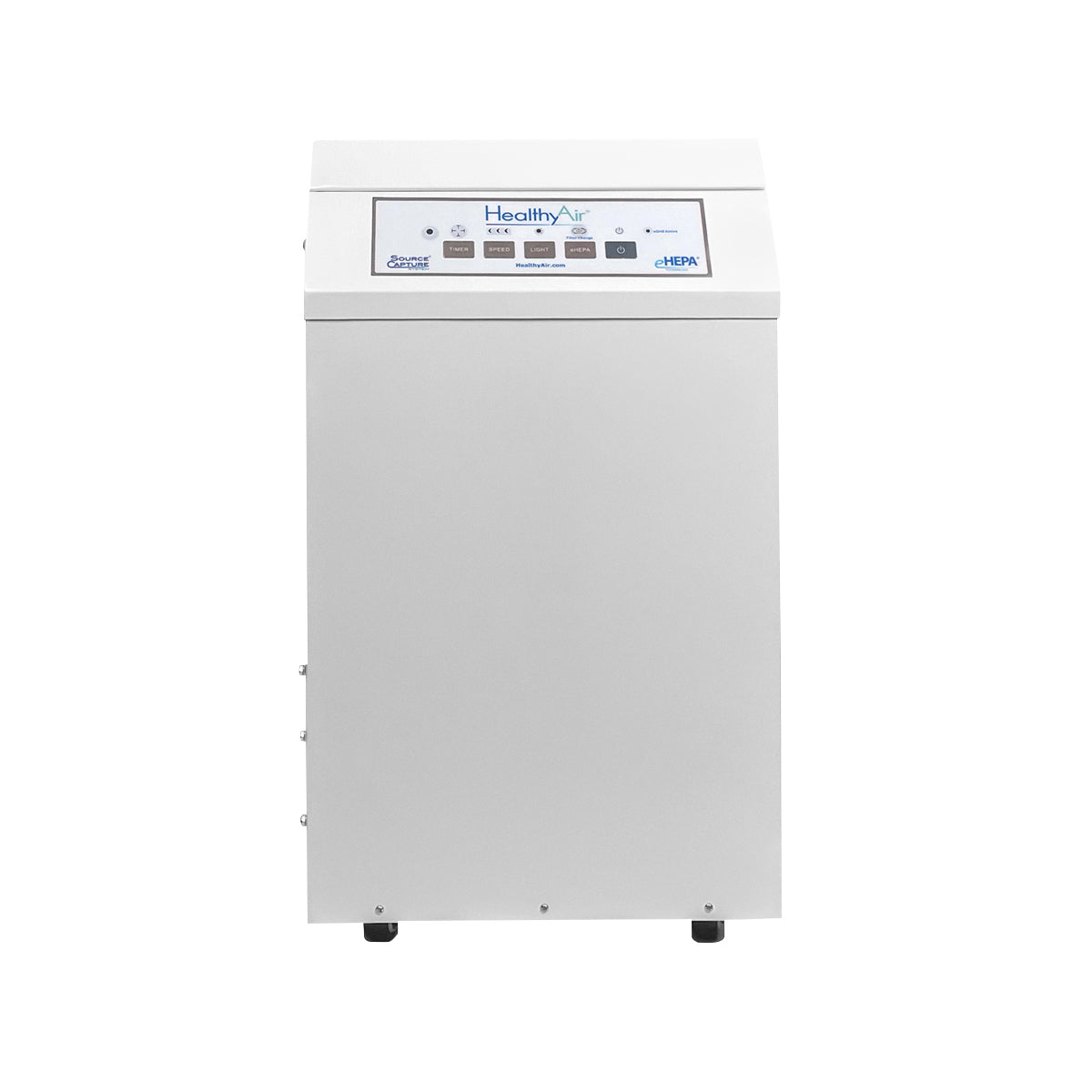

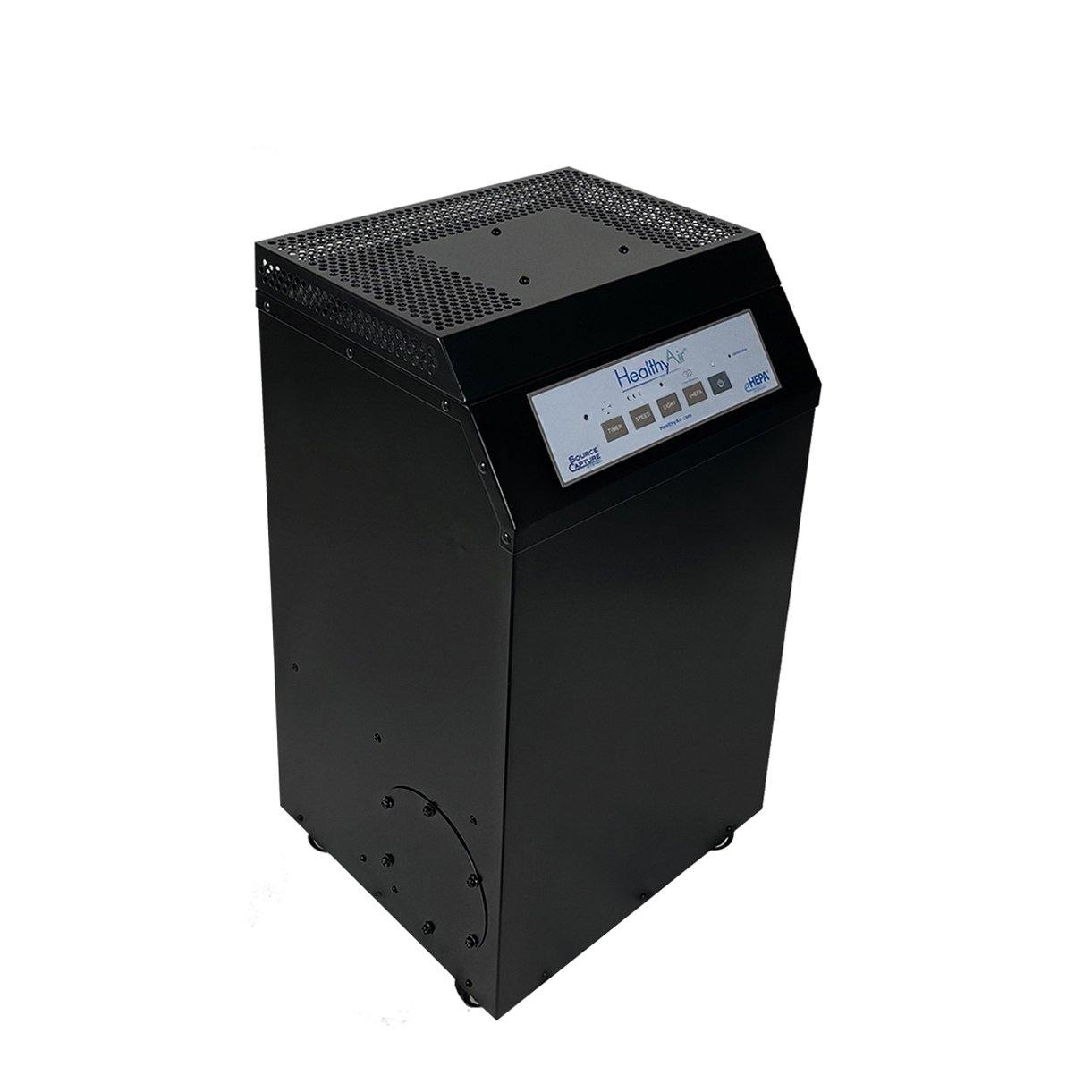

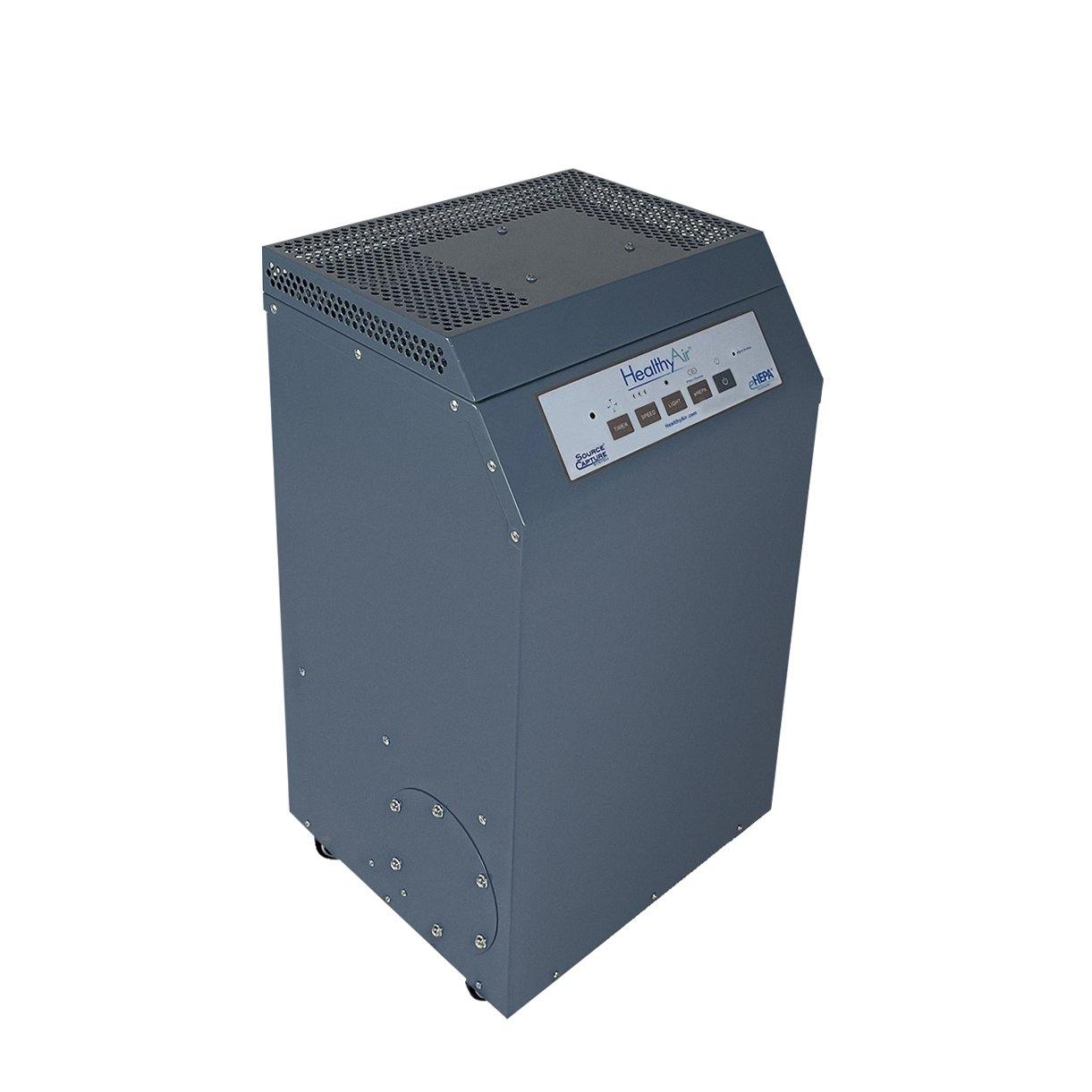

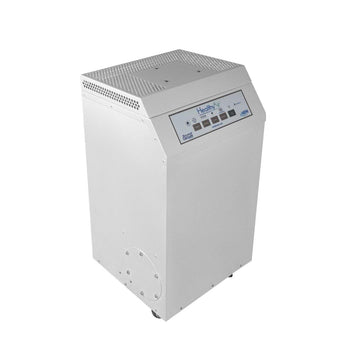

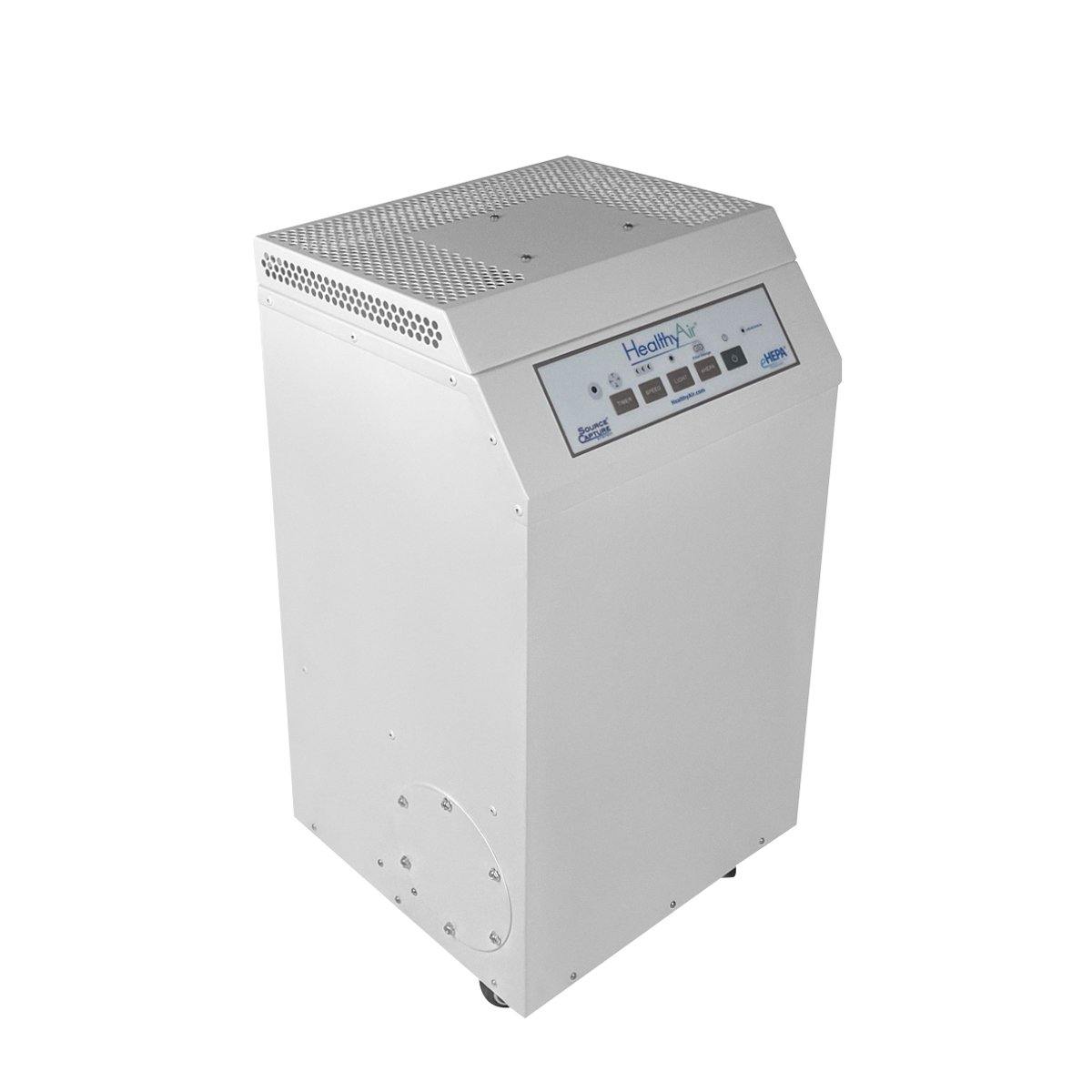

HealthyAir® Air Purifier
The HealthyAir® Air Purifier is designed for use in a multitude of commercial settings, including offices, dental operatories, salons, class rooms, and waiting rooms.
Coverage
Depending on the application, one or more units will be required to accommodate large spaces and address higher levels of indoor contaminants.
One unit will generally cover a space of 500 ft2 in an office setting. One unit in a smaller room, such as a dental operatory that is approximately 200 ft2, provide >5 air exchanges per hour.
The ASHRAE recommends the following air changes per hour of outdoor air to ensure adequate indoor air for various settings.
| Facility Type |
Suggested Air Exchanges Per Hour
|
Offices
|
2-3 |
| Retail Shops |
2-3 |
| Schools/Classrooms |
5-6 |
| Gyms |
4-8 |
| Restaurants |
6-8 |
Patented eHEPA® Technology
With patented eHEPA® technology, this unit effectively filter air in a highly efficient and innovative 3-stage process, resulting in a safer environment with a healthier breathing zone for occupants.
As contaminated air passes through the unit, the Pre-Filter, eHEPA® Filter, and Enhanced Carbon Catalytic Filter work in conjunction to collect and deactivate airborne particles; including microorganisms, dust, smoke, allergens, gasses, odors, and VOCs.
HealthyAir® System 3-stage process collectively utilizes the 5 filtration methods of Sieving, Direct impact, Inertial Impaction, Diffusion, and Electrostatic.
Operation
The HealthyAir® Portable Air Purifier offers simple remote and touch control operation and is equipped with a three-speed fan that enables control of air flow and sound level.

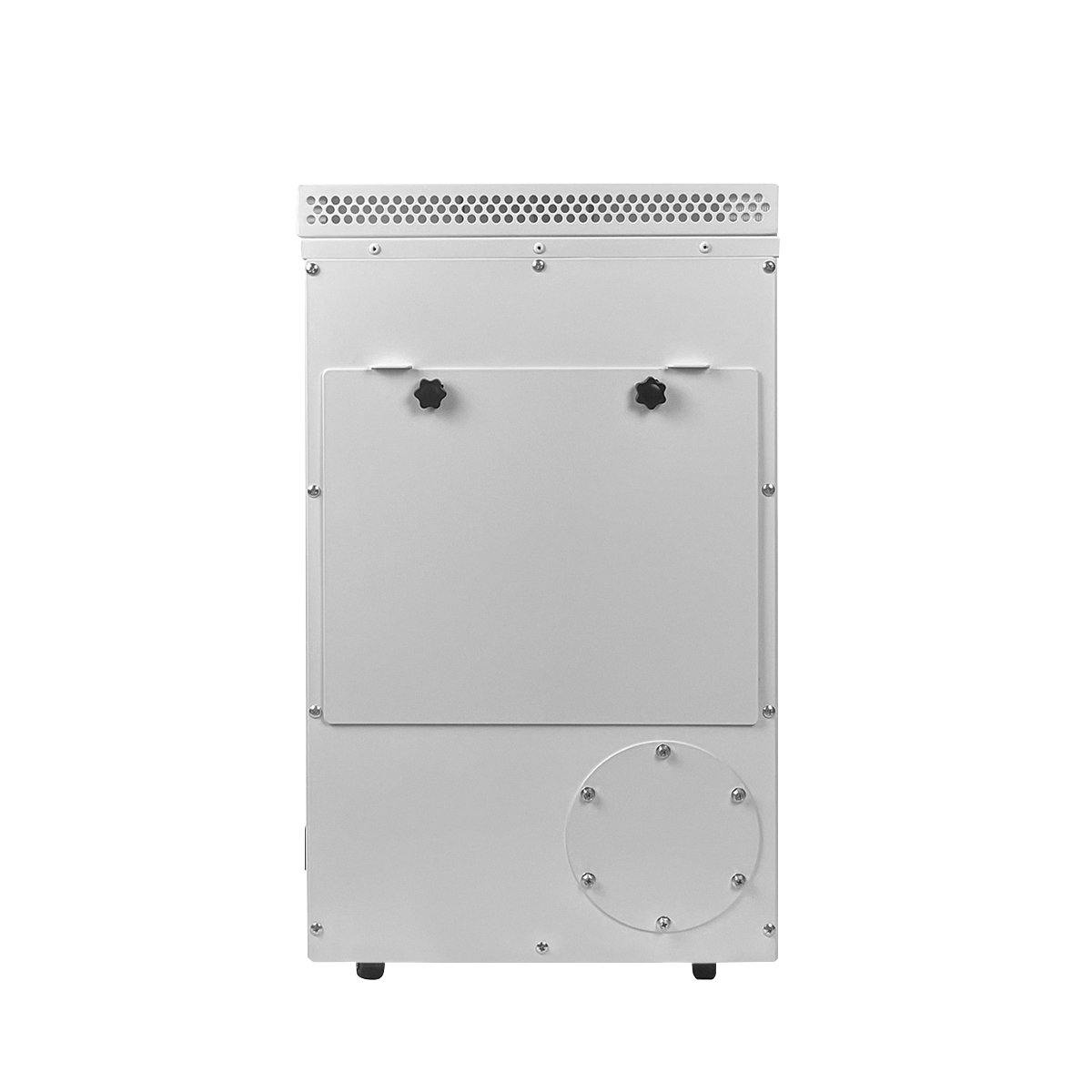

Maintenance of the unit is simple and does not require the use of any tools. Naturally, when it is time for the filters to be periodically changed, the access door on the back of the unit can be effortlessly unlocked enabling easy access to the filter housing.
Filter Model & Replacement
The HealthyAir® Air Purifier utilizes the HA-IFM-1111-AE or HA-IFM-1111 Integrated Filter Module. Each unit comes with (1) pre-installed HA-IFM-1111-AE filter.
The HA-IFM-1111-AE model contains an H13 rated medical grade HEPA filter and offers higher filtration efficiency of ultra-fine particles, including microscopic biological matter.
The HA-IFM-1111 model contains a larger Activated Carbon filter and offers higher adsorption capacity of VOCs and odor causing vapors.
The recommend filter replacement cycle is 6-9 months on average. However, the need for filter replacement naturally varies depending on the frequency and nature of use.
When the unit has been in operation for 400-hours, the Filter Change indicator light, on the Control Panel, will begin to flash. This serves as a reminder to inspect and/or replace the filter.
The Filter Change Timer can be reset by following the reset protocol outlined in the manual.
The following replacement filters are compatible with this unit:
