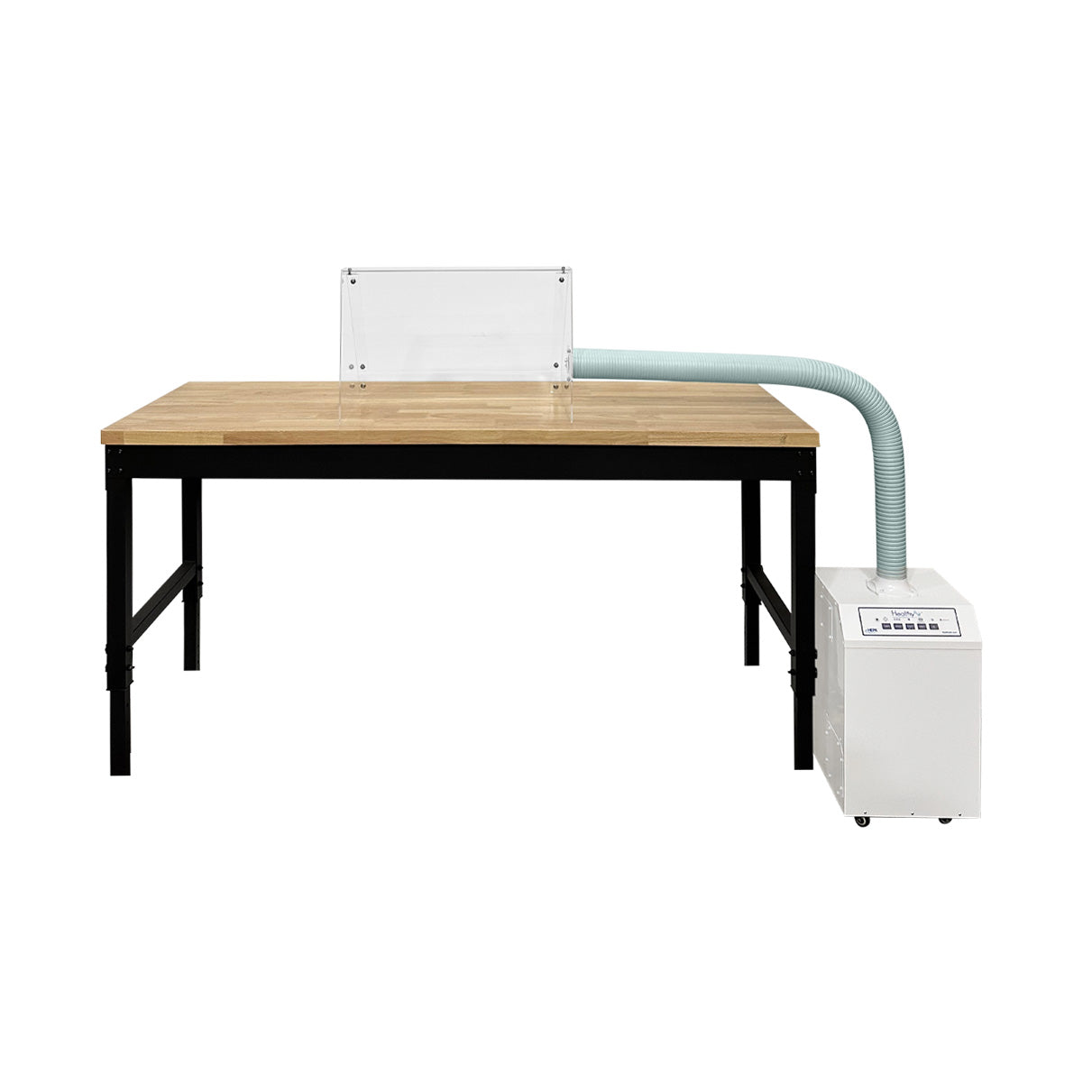

HealthyAir Benchtop Hood Fume Extractor
The HealthyAir Benchtop Hood Fume Extractor is an air purification and ventilation system designed to extract and filter airborne contaminants including fine particles and dust, chemical vapors (VOCs), smoke and microorganisms.
Flex Hose Connection of Fume Hood to Air Purification System
The HealthyAir HealthyAir Benchtop Hood Fume Extractor provides a 3" dia. flex hose that connects the outlet Tabletop Hood to the inlet port of the unit.
There are several options for the length of flex hose provided, and custom lengths can be ordered upon request.
Flex Hose Connection of Unit Outlet to Exhaust Duct
The HealthyAir Benchtop Hood Fume Extractor provides a 5" dia. exhaust outlet port for connection of the unit to the exhaust duct.
Depending on user preference and site considerations, there are several options for the exhaust duct material. A local HVAC technician, plumber, general contractor or DIY enthusiast, may utilize galvanized sheet metal duct, PVC, aluminum flex duct or other flexible material for direct connection to the unit's outlet port and the exhaust line that vents out of the facility.
The option of utilizing our specialized Exhaust Duct Flex Hose as a transition for connection of the unit to the main exhaust duct is also available. This component is provided as a separate item that can be added, and various lengths are available to choose from.
Outside Ventilation
The components required to setup the unit for Outside Venting come with the unit, as outlined in the manual. When configured for Outside Ventilation, the system is designed to take in contaminated air though the extraction hose, filter contaminants, and discharge treated air out of the facility via an exhaust duct connection to the 5” dia. outlet port of the unit.
Recirculating Ventilation
This unit is also able to be operated as a Recirculating Ventilation system to provide air purification when connected to downdraft tables or similar work stations.
Weight & Dimensions
The approximate weight and base dimensions of the units are: 40 lbs. - 12”l x 14”w x 20”h
Operation
The HA-SCP-G6-BFE offer simple remote-control operation and is equipped with fan three-speeds.
Maintenance of the unit is simple and does not require the use of any tools.
Filter Model & Replacement
The Healthy Air Local Exhaust Ventilation System utilizes the HA-IFM-1111 Integrated Filter Module that consists of a Pre-Filter, eHEPA Filter, and Activated Carbon Filter. Each unit comes with (1) pre-installed filter.
The recommend filter replacement cycle is 6 month on average. However, the need for filter replacement naturally varies depending on the frequency and nature of use.
The following replacement filters are compatible with modelHA-SCP-G6:
